DR PN 689 P Highflex

reeling Profinet cable

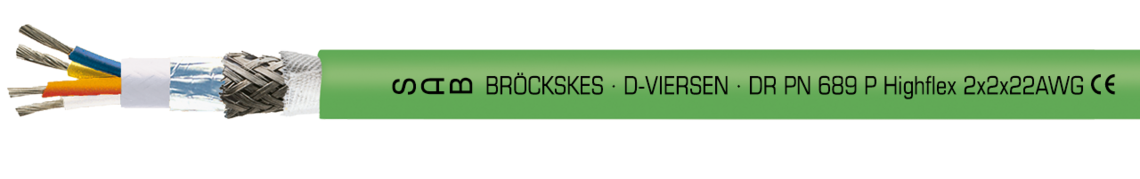

Marking for DR PN 689 P Highflex 06892202: SAB Bröckskes · D-VIERSEN · DR PN 689 P Highflex 2x2x22AWG CE

Marking for DR PN 689 P Highflex 06892202: SAB Bröckskes · D-VIERSEN · DR PN 689 P Highflex 2x2x22AWG CE

Application

Additional information

Please pay attention to the installation instructions on page 11!

Construction

Dimension

2 x 2 x 22 AWG

Conductor

tinned copper strands, fine wires

Insulation

SABIX®

Colour code

blue, yellow, white, orange

Stranding

in layers

Wrapping

PETP foil

Inner sheath

SABIX®

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR / supporting braid / PUR

Sheath colour

green (similar RAL 6018)

Dimension

2 x 2 x 22 AWG

Conductor

tinned copper strands, fine wires

Insulation

SABIX®

Colour code

blue, yellow, white, orange

Stranding

in layers

Wrapping

PETP foil

Inner sheath

SABIX®

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR / supporting braid / PUR

Sheath colour

green (similar RAL 6018)

Technical data

Item number

0689-2202

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

for laying and installation (fixed laying): 5 x d

for repeated winding action (flexible): 10 x d

guided on pulleys (flexible): 12 x d

Temperature range

fixed laying: -40/ +90°C

flexible application: -30/ +90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Characteristic impedance

100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)

Absence of harmful substances

acc. to RoHS directive of the European Union

Item number

0689-2202

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

for laying and installation (fixed laying): 5 x d

for repeated winding action (flexible): 10 x d

guided on pulleys (flexible): 12 x d

Temperature range

fixed laying: -40/ +90°C

flexible application: -30/ +90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Characteristic impedance

100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)

Dimensions

item no.

copper figure

cable weight ca.

ohmic resistance
at 20°C acc. to VDE 0812
max. Ω/km

0689220236,2 mm83 kg/km58,8 Ω/km Send inquiry
0689900134,3 mm85 kg/km139 Ω/km Send inquiry
item no.
copper figure
cable weight ca.
ohmic resistance
at 20°C acc. to VDE 0812
max. Ω/km
06892202
36,2 mm
83 kg/km
58,8 Ω/km
06899001
34,3 mm
85 kg/km
139 Ω/km

Other dimensions and colours are possible on request.
