PB 642

PVC Profibus cable

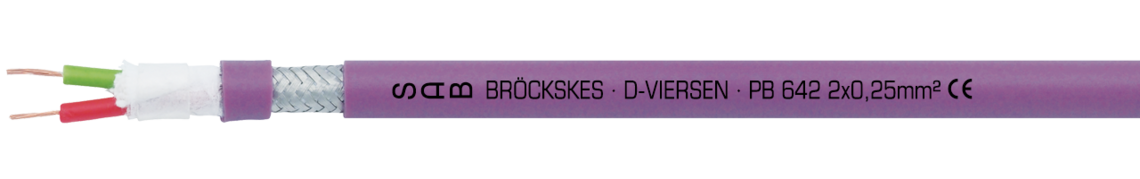

Marking for PB 642 06422221: SAB BRÖCKSKES · D-VIERSEN · PB 642 · 2 x 0,22 mm² CE

Marking for PB 642 06422221: SAB BRÖCKSKES · D-VIERSEN · PB 642 · 2 x 0,22 mm² CE

Application

PROFIBUS DP cable with medium weather resistance is suitable for fixed and flexible installation. This Profibus DP cable is oil-resistant and was specially developed for communication between automation systems and decentralized peripheral devices in the field.

Outstanding features

  • oil resistant
  • easy installation and maintenance

Construction

Conductor

bare copper strands with reference to DIN VDE 0812

Insulation

PE, 2YI1 acc. to EN 50290-2-23 + VDE 0819-103

Colour code

red, green (PA)

DIN 47100 (Typ B)

Stranding

in layers

Wrapping

PETP-foil

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1

Conductor

bare copper strands with reference to DIN VDE 0812

Insulation

PE, 2YI1 acc. to EN 50290-2-23 + VDE 0819-103

Colour code

red, green (PA)

DIN 47100 (Typ B)

Stranding

in layers

Wrapping

PETP-foil

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1500 V

core/screen: 1200 V

Min. bending radius

7,5 x d

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Oil resistance

acc. to internal standard

Characteristic impedance

Typ B: at > 100 KHz 100 Ω - 130 Ω

PA: 100 Ω ± 20%

For fixed installation

suitable

For flexible application

suitable

Application in cable tracks

not recommended

Weather resistance

middel

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1500 V

core/screen: 1200 V

Min. bending radius

7,5 x d

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Characteristic impedance

Typ B: at > 100 KHz 100 Ω - 130 Ω

PA: 100 Ω ± 20%

For fixed installation

suitable

For flexible application

suitable

Application in cable tracks

not recommended

Weather resistance

middel

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Colour code Dimension Outer-ø ± 5% Copper figure Cable weight ≈
L06422221RAL 40012 x 0,22 mm²4,4 mm14,7 kg/km26 kg/km Send inquiry
L06424221RAL 40012 x 2 x 0,22 mm²6,2 mm22,4 kg/km45 kg/km Send inquiry
L06422251RAL 40012 x 0,25 mm²4,9 mm15,4 kg/km30 kg/km Send inquiry
L06424251RAL 40012 x 2 x 0,25 mm²6,7 mm26,5 kg/km52 kg/km Send inquiry
L06422767RAL 50152 x 0,82 mm²7,3 mm38,1 kg/km68 kg/km Send inquiry
L06422768RAL 90052 x 0,82 mm²7,3 mm38,1 kg/km68 kg/km Send inquiry
item no.
Colour code
Dimension
Outer-ø ± 5%
Copper figure
Cable weight ≈
L06422221
RAL 4001
2 x 0,22 mm²
4,4 mm
14,7 kg/km
26 kg/km
L06424221
RAL 4001
2 x 2 x 0,22 mm²
6,2 mm
22,4 kg/km
45 kg/km
L06422251
RAL 4001
2 x 0,25 mm²
4,9 mm
15,4 kg/km
30 kg/km
L06424251
RAL 4001
2 x 2 x 0,25 mm²
6,7 mm
26,5 kg/km
52 kg/km
L06422767
RAL 5015
2 x 0,82 mm²
7,3 mm
38,1 kg/km
68 kg/km
L06422768
RAL 9005
2 x 0,82 mm²
7,3 mm
38,1 kg/km
68 kg/km

Other dimensions and colours are possible on request.
