PN 663

PVC Profinet cable type B for flexible applications with UL recognition

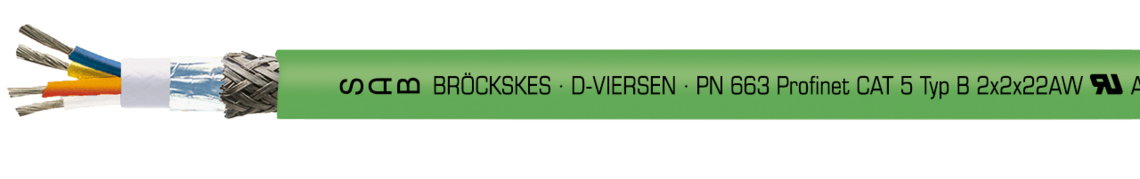

Marking for PN 663 06632202: SAB BRÖCKSKES · D-VIERSEN · PN 663 Profinet CAT 5 Typ B 2 x 2 x 22 AWG UL AWM Style 20601 80°C 300V CE

Marking for PN 663 06632202: SAB BRÖCKSKES · D-VIERSEN · PN 663 Profinet CAT 5 Typ B 2 x 2 x 22 AWG UL AWM Style 20601 80°C 300V CE

Application

PN 663 is an UL approved Profinet type B industrial ethernet cable for flexible applications.

Outstanding features

  • UL recognition

Additional information

also possible as harnessed cable with M12 or RJ 45 plug

Construction

Dimension

2 x 2 x 22 AWG

Conductor

tinned copper strands, fine wires acc. to VDE 0812

Insulation

PE, L/MD acc. to EN 50290-2-23

Colour code

blue, yellow, white, orange

Stranding

in layers

Wrapping

PETP-foil

Inner sheath

thermoplastic material

Screen

alu foil and tinned copper braiding

Sheath material

PVC

Sheath colour

green (similar RAL 6018)

Dimension

2 x 2 x 22 AWG

Conductor

tinned copper strands, fine wires acc. to VDE 0812

Insulation

PE, L/MD acc. to EN 50290-2-23

Colour code

blue, yellow, white, orange

Stranding

in layers

Wrapping

PETP-foil

Inner sheath

thermoplastic material

Screen

alu foil and tinned copper braiding

Sheath material

PVC

Sheath colour

green (similar RAL 6018)

Technical data

Item numbers

0663-2202

Peak operating voltage

max. 350 V

Voltage

UL: 300 V

Testing voltage

core/core 2000 V

core/screen: 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

VDE fixed laying: -30/+70°C

VDE flexible application: -5/+70°C

UL: up to +80°C

Oil resistance

acc. to internal standard

Characteristic impedance

100Ω ± 5Ω, accomplishes the electrical and transmission requirements with high frequency

acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)

UL Style

20601

Absence of harmful substances

acc. to RoHS directive of the European Union

Item numbers

0663-2202

Peak operating voltage

max. 350 V

Voltage

UL: 300 V

Testing voltage

core/core 2000 V

core/screen: 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

VDE fixed laying: -30/+70°C

VDE flexible application: -5/+70°C

UL: up to +80°C

Characteristic impedance

100Ω ± 5Ω, accomplishes the electrical and transmission requirements with high frequency

acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)

UL Style

20601

Dimensions

item no. no. of cores cross section max. core-ø outer-ø ± 5% copper figure cable weight ca. ohmic resistance at 20°C acc. to VDE 0812 max. Ω/km
0663220236,2 kg/km66 kg/km422 AWG1,55 mm6,5 mm58 Send inquiry
item no.
no. of cores
cross section
max. core-ø
outer-ø ± 5%
copper figure
cable weight ca.
ohmic resistance at 20°C acc. to VDE 0812 max. Ω/km
06632202
36,2 kg/km
66 kg/km
4
22 AWG
1,55 mm
6,5 mm
58

Other dimensions and colours are possible on request.

Highly flexible cables according to your special requirements

Family business for construction and production since 1947

Please send us your inquiry
