PN 668
PUR Profinet cable type R, suitable for robots with UL recognition

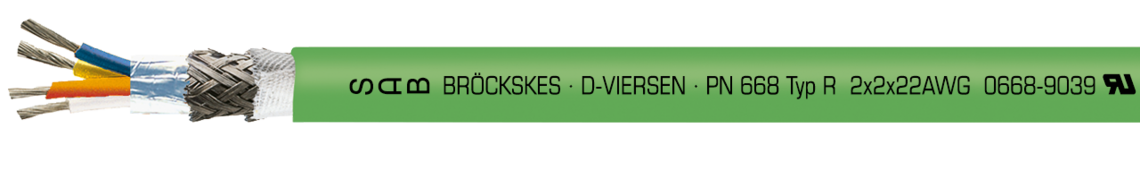

Marking for PN 668 06689039: SAB BRÖCKSKES · D-VIERSEN · PN 668 Typ R 2x2x22AWG 0668-9039 UL AWM Style 21198 80° 300V
Application
Robot Prifinet cable type R with UL approval for use on robots. The cable is oil resistant and can be twisted up to a torsion angle of ±360°/m.
Outstanding features
- suitable for robots
- halogen-free
- very good oil resistance
Additional information
Also possible as harnessed cable with M12 or RJ 45 plug
Construction
| Dimension | 2 x 2 x 22 AWG |
|---|---|
| Conductor | tinned copper strands, extra fine wires |
| Insulation | special polymer |
| Colour code | blue, yellow, white, orange |
| Stranding | cores twisted to pairs and pairs together |
| Wrapping | non-woven tape |
| Screen | tinned copper braiding |
| Wrapping | special non-woven tape |
| Sheath material | PUR |
| Sheath colour | green (similar RAL 6018) |
2 x 2 x 22 AWG
tinned copper strands, extra fine wires
special polymer
blue, yellow, white, orange
cores twisted to pairs and pairs together
non-woven tape
tinned copper braiding
special non-woven tape
PUR
green (similar RAL 6018)
Technical data
| Peak operating voltage | max 30 V |
|---|---|
| Voltage UL | 300 V |
| Testing voltage | core/core: 2000 V core/screen: 2000 V |
| Min. bending radius | fixed laying: 3 x d flexible application 10 x d |
| Temperature range | UL: up to +80 °C -40/+70 °C -30/+70 °C |
| Torsion angle | up to ±360°/m |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Oil resistance | TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Characteristic impedance | 100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1) |
| UL Style | 21198 |
| Application | suitable for EtherCAT and EtherNET/IP applications |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max 30 V
300 V
core/core: 2000 V
core/screen: 2000 V
fixed laying: 3 x d
flexible application 10 x d
UL: up to +80 °C
-40/+70 °C
-30/+70 °C
up to ±360°/m
acc. to IEC 60754-1 + VDE 0482-754-1
TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency
with reference to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)
21198
suitable for EtherCAT and EtherNET/IP applications
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Outer-ø ± 5% | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C acc. to VDE 0812 max. Ω/km | |
|---|---|---|---|---|---|---|
| L06689039 | 2 x 2 x 22 AWG | 7,8 mm | 36,7 kg/km | 68 kg/km | 58,8 Ω/km | Send inquiry |
at 20°C acc. to VDE 0812
max. Ω/km
Other dimensions and colours are possible on request.
