S PB 644
PUR Profibus cable for cable tracks

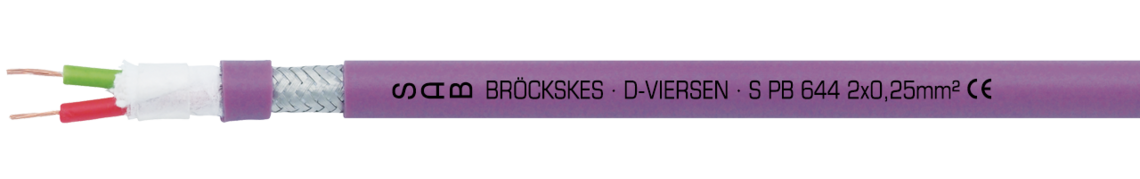

Marking example: SAB BRÖCKSKES · D-VIERSEN · S PB 644 2 x 0,25 mm² CE
Application
The highly flexible Profibus cable for cable tracks has a very good weather resistance as well as a very good oil resistance. This drag chain-compatible Profibus cable meets the requirements of the chemical and petrochemical industry and also enables intrinsic safety and bus supply of field devices.
Outstanding features
- suitable for cable tracks
- very good oil resistance
- very good weather resistance
- easy installation and maintenance
- PFAS-free
Construction
| Conductor | bare copper strands, extra fine wires |
|---|---|
| Insulation | PE, 2YI1 acc. to EN 50290-2-23 + VDE 0819-103 |
| Colour code | red, green (PA) DIN 47100 (Typ B) |
| Stranding | in layers |
| Wrapping | PETP foil, non-woven tape |
| Screen | tinned copper braiding |
| Sheath material | PUR, TMPU acc. to EN 50363-10-2 with rough surface |
bare copper strands, extra fine wires
PE, 2YI1 acc. to EN 50290-2-23 + VDE 0819-103
red, green (PA)
DIN 47100 (Typ B)
in layers
PETP foil, non-woven tape
tinned copper braiding
PUR, TMPU acc. to EN 50363-10-2
with rough surface
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Testing voltage | core/core: 1500 V core/screen: 1200 V |
| Min. bending radius | 7,5 x d 12 x d continuously flexible |
| Temperature range | fixed laying: -40/+70°C flexible application: -40/+70°C |
| Oil resistance | very good - acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Characteristic impedance | Typ B: at > 100 KHz 100 Ω - 130 Ω PA: 100 Ω ± 20% |
| For fixed installation | suitable |
| For flexible application | suitable |
| Application in cable tracks | recommended |
| Weather resistance | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
core/core: 1500 V
core/screen: 1200 V
7,5 x d
12 x d continuously flexible
fixed laying: -40/+70°C
flexible application: -40/+70°C
very good - acc. to EN 50363-10-2 + VDE 0207-363-10-2
Typ B: at > 100 KHz 100 Ω - 130 Ω
PA: 100 Ω ± 20%
suitable
suitable
recommended
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. | Type | Dimension |
Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L06442251 | RAL 4001 | 2 x 0,25 mm² | 5,2 mm | 15,9 kg/km | 33 kg/km | Send inquiry |
| L06444251 | RAL 4001 | 2 x 2 x 0,25 mm² | 6,8 mm | 26,4 kg/km | 57 kg/km | Send inquiry |
± 10%
Other dimensions and colours are possible on request.
