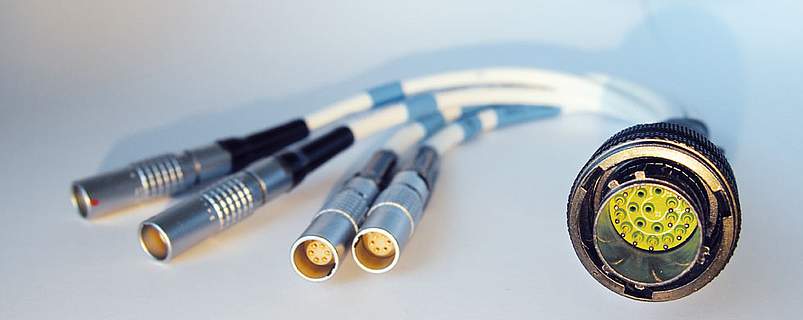

Adapter cable

for the suitable connection

Application

SAB offers different adapters in its product range. These can be designed acc. to special requirements. For example to combine two connection cables so that they have a bigger total length or in order to prolong a sensor cable. The adapters are individually made for the corresponding cable harness or sensor (pin assignment, size, number of poles, etc.)

Additional information

Further cable types are possible on request for example:

  • sheath material up to +150°C, silicone free
  • different cable lengths
  • various sheath colours and marking
  • different dimensions, sections and numbers of cores (dependant on plug)



You can choose from different plug connectors:

  • Lemo connector
  • ODU connector
  • Fischer connector
  • Yamaichi connector



Connection ends for example:

  • round plug connector 5-pole at both sides
  • round plug connector 9-pole at both sides



Cable variations for example:

  • 2 x AWG 28 + 1 x AWG 28 + 2 x 0,50 mm²
  • 2 x AWG 28 + 8 x AWG 28
  • 2 x 2 x AWG 28 + 1 x AWG 28

Cable construction

conductor

tinned copper strands

core insulation

Polymer

screen

tinned copper braiding

outer sheath

special material

sheath colour

black (RAL 9005)

Technical data

temperature range

flexible application: -40°C/+90°C

fixed laying: -50°C/+90°C

short-time use: +125°C

special features

silicone free
