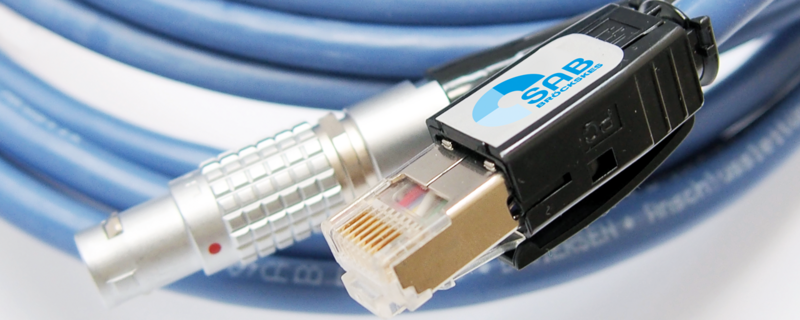

Connecting cable module/PC for extreme demands
Application
In order to be able to analyse and show the different measurement values on the display unit, a connection between PC and laptop is needed. For this purpose SAB BRÖCKSKES has different types for the individual requirements in its product range. Among others the values can be transferred at arctic temperatures with flexible cables even at low temperatures. The application isn't impeded by a rigid cable.
Additional information
Further cable types are possible on request for example:
- Besilen® flexible with cold temperatures to -40°C / Besilen® heat resistant up to +220°C
- sheath material up to 150°C, silicone free
- different cable lengths
- various sheath colours and marking
- different dimensions, sections and number of cores appropriate for CAT 5, CAT 6, CAT 7 (dependant on plug)
You can choose from different plug connectors:
- Harting RJ 45 plug, Weidmüller RJ 45 plug
- Telegärtner RJ 45 plug, ODU round connector
- Lemo round connector
Construction
| conductor | silver plated copper strands |
|---|---|
| core insulation | PE |
| screen | alu foil / tinned copper braiding |
| outer sheath | special material |
| sheath colour | blue (RAL 5015) |
conductor
silver plated copper strands
core insulation
PE
screen
alu foil / tinned copper braiding
outer sheath
special material
sheath colour
blue (RAL 5015)
