FEP insulated hybrid cable

with connector housing

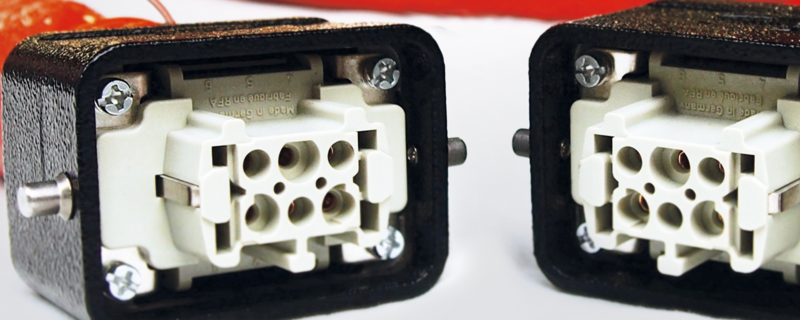

FEP insulated thermo cable with bulkhead housing and Harting plug

FEP insulated thermo cable with bulkhead housing and Harting plug

Application

The steel industry is another field where SAB Bröckskes cable harnessing products are used. The above shown cable harness consists of a hybrid cable and 2 connector housings. Additionally a heat shrinkable sleeve protects the cable against external influences (for example fire). This special combination transfers data (Profibus) and power at the same time.

Additional information

Among others the following cable types belong to our delivery program:

  • Besilen® flexible with cold temperatures to -40°C / Besilen® heat resistant up to +220°C
  • sheath material up to 150°C, silicone-free
  • different cable lengths
  • various sheath colours and marking
  • different dimensions, sections and number of cores


You can choose from the following plug connectors:

  • Binder plug connector
  • Weidmüller plug connector
  • Phoenix Contact plug connector
  • Harting plug connector

Cable variations for example:

  • 2 x 0,22 mm² + 3 x 1,50 mm²

Construction

Connection ends

S1: bulkhead housing



S2: Harting plug

Connection ends

S1: bulkhead housing



S2: Harting plug

Technical data

Cable type

FEP insulated multiple thermo cable

2 x 0,50 mm² PiMF

Cable type

FEP insulated multiple thermo cable

2 x 0,50 mm² PiMF

Highly flexible cables according to your special requirements
