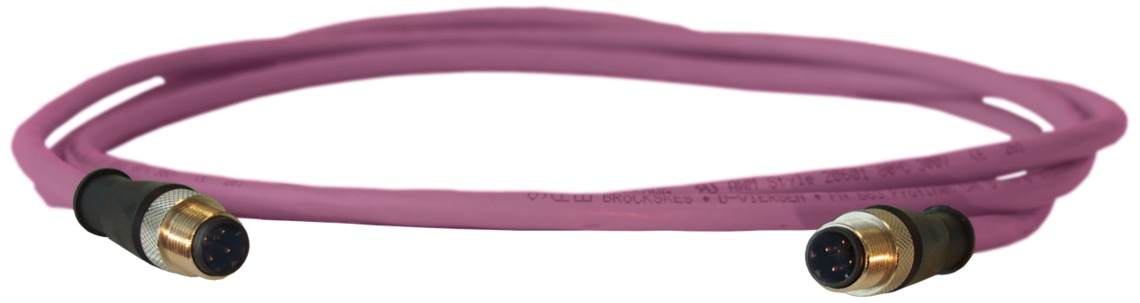

Harnessed Profibus Cable

suitable for cable tracks with M12 male connector assembly

Application

Assemblied Profibus cable with M12 connector (B-Coded) for the field bus wiring in automation technique. This bus cables transfer Profibus signals with different cable and plug combinations. The PUR M12 cable for cable chain applications is resistant against rough environmental conditions in industrial applications.



Construction

Conductor

bare copper strands

Insulation

TPK

Screen

alu foil and tinned copper braiding

Sheath material

PUR

Sheath colour

red lilac (RAL 4001)

Conductor

bare copper strands

Insulation

TPK

Screen

alu foil and tinned copper braiding

Sheath material

PUR

Sheath colour

red lilac (RAL 4001)

Technical data

Min. bending radius

continuously flexible 12 x d

Temperature range

flexible application: -40/+80°C

fixed laying: -40/+80°C

Special feature

characteristic impedance at 3 - 20 MHz: 150Ω ± 10%

with reference to EN 50170,

oil resistant,

suitable for cable tracks

Pin configuration

pin1: n.b.

pin2: green

pin3: n.b.

pin4: red

pin5: n.b.

housing: screen

Plug types

- M12 plug(male) 5-pole, B-coded

- M12 socket (female) 4-pole, D-coded

straight or tilted

moulded or mounted

Min. bending radius

continuously flexible 12 x d

Temperature range

flexible application: -40/+80°C

fixed laying: -40/+80°C

Special feature

characteristic impedance at 3 - 20 MHz: 150Ω ± 10%

with reference to EN 50170,

oil resistant,

suitable for cable tracks

Pin configuration

pin1: n.b.

pin2: green

pin3: n.b.

pin4: red

pin5: n.b.

housing: screen

Plug types

- M12 plug(male) 5-pole, B-coded

- M12 socket (female) 4-pole, D-coded

straight or tilted

moulded or mounted

Customized cable assembly according to your wishes.
