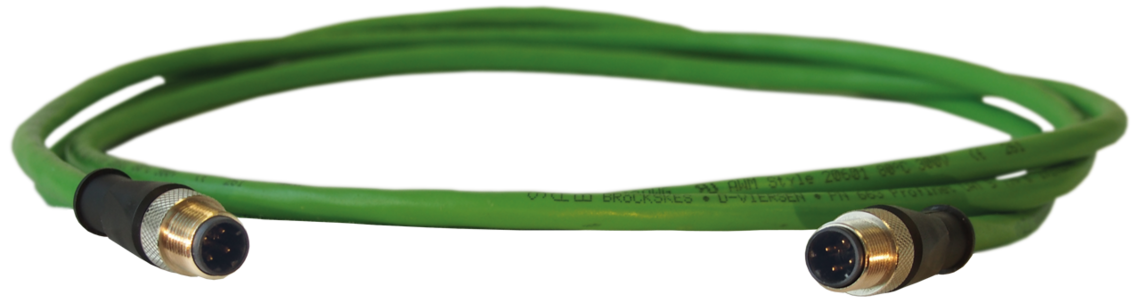

Harnessed Profinet Cable

suitable for cable tracks with M12 male connector assembly

Application

Profinet cable with M12 connector D-coded for the field bus cabling of Profinet field bus systems in industrial sectors. This M12 cable is used for example in cable chain applications for automation and machine and plant construction with rough environments. The PUR outer sheath is resistant against rough environmental conditions.

Construction

Conductor

tinned copper strands

Insulation

special polymer

Screen

Alu foil and tinned copper braiding

Sheath material

PUR

Sheath colour

green (RAL 6018)

Conductor

tinned copper strands

Insulation

special polymer

Screen

Alu foil and tinned copper braiding

Sheath material

PUR

Sheath colour

green (RAL 6018)

Technical data

Min. bending radius

continuously flexible 15 x d

Temperature range

flexible application: -20/+70°C

fixed laying: -30/+70°C

Special feature

characteristic impedance 100Ω ± 10Ω

CAT 5 with reference to EN 50173-1,

oil resistant,

suitable for cable tracks

Pin configuration

pin1: yellow

pin2: white

pin3: orange

pin4: blue

housing: screen

Plug types

- M12 plug(male) 4-pole, D-coded

- M12 socket (female) 4-pole, D-coded

straight or tilted

moulded or mounted

Min. bending radius

continuously flexible 15 x d

Temperature range

flexible application: -20/+70°C

fixed laying: -30/+70°C

Special feature

characteristic impedance 100Ω ± 10Ω

CAT 5 with reference to EN 50173-1,

oil resistant,

suitable for cable tracks

Pin configuration

pin1: yellow

pin2: white

pin3: orange

pin4: blue

housing: screen

Plug types

- M12 plug(male) 4-pole, D-coded

- M12 socket (female) 4-pole, D-coded

straight or tilted

moulded or mounted

Customized cable assembly according to your wishes.
