Cable harness for robots
with 37-pin angle plug, AMP / Molex connector assembly

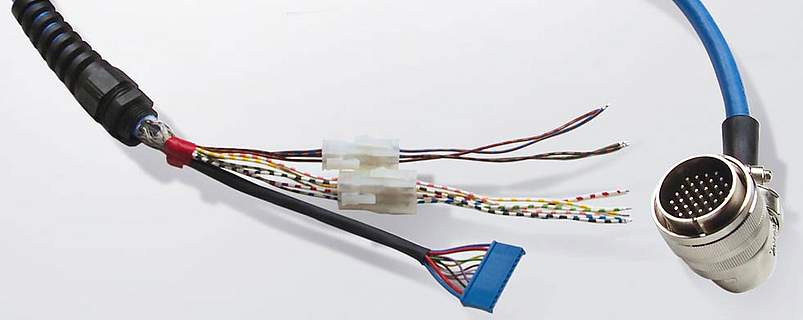

Cable harness for robots with 37-pin angle plug, AMP / Molex connector assembly
Application
The shown product is equally used for the robot industry, particularly for paint robots. This type has got a 37-pole angle plug on the one side and an AMP Molex connector on the other side. According to the customers requirements the cable harness can be adapted individually.
Additional information
Further cable types are possible on request for example:
- flexible Besilen cables to -40°C heat resistant Besilen up to +220°C
- sheath material up to 150°C, silicone-free
- different cable lengths
- various sheath colours and marking
- different dimensions, sections and number of cores (dependant on plug)
You can choose from different plug connectors:
- Molex plug connector
- Weidmüller plug connector
- Wieland plug connector
- ITT plug connector
Cable variations for example:
- (8 x 0,50 mm²)C + (4 x 0,50 mm²)C + 4 x 2 x 0,25 mm² + 4 x 0,50 mm² + 6 x 1 x 0,50 mm²D
