Cabel harness with valve connector

for special machine construction

Cabel harness with valve connector for special machine construction

Cabel harness with valve connector for special machine construction

Application

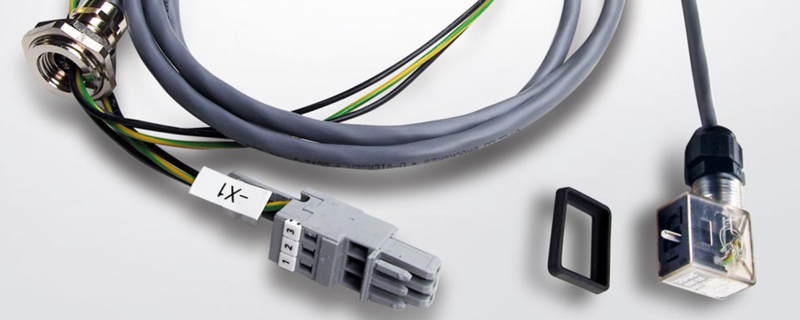

Machine construction is another field where products from SAB BRÖCKSKES GmbH & Co. KG are used. Cable harnesses are for example installed in textile machines. The above shown product contains a currentcarrying cable to supply an energy-efficient textile machine. On one side a valve connector is mounted and on the other side a conductor plate. For special machine construction, SAB offers a variety of product solutions.

Additional information

Further cable types are possible on request for example:

  • flexible Besilen to -40°C heat resistant Besilen up to +220°C
  • sheath material up to 150°C, silicone-free
  • different cable lengths
  • various sheath colours and marking
  • different dimensions, sections and number of cores

You can choose from different plug connectors:

  • Harting plug connector
  • Weidmüller plug connector
  • Wieland plug connector
  • ITT plug connector



Cable variations for example:

  • 3 x 1,0 mm²

Construction

Conductor

bare copper strands

Core insulation

PVC

Screen

tinned copper braiding

Outer sheath

PVC

Sheath colour

grey

Conductor

bare copper strands

Core insulation

PVC

Screen

tinned copper braiding

Outer sheath

PVC

Sheath colour

grey

Technical data

Temperature range

flexible application: + 5°C/+70°C

fixed laying: -40°C/+70°C

Temperature range

flexible application: + 5°C/+70°C

fixed laying: -40°C/+70°C

Highly flexible cables according to your special requirements
