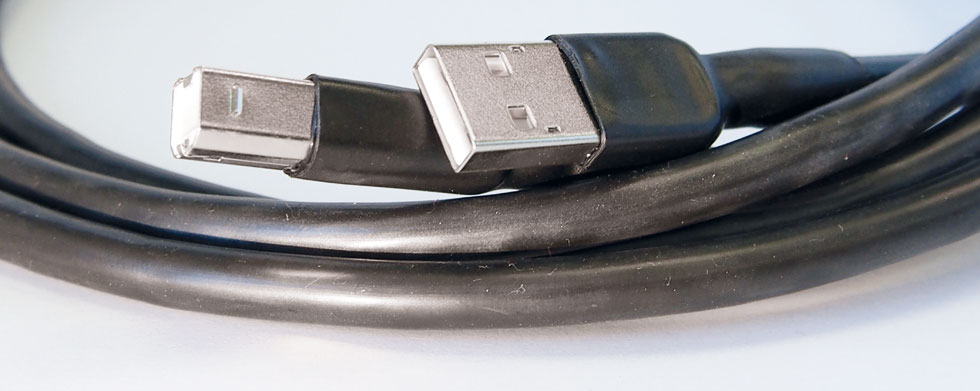

USB 2.0 cable flexible at low temperatures
suitable for the application at extremely low temperatures
Application
The requirements on automobiles of tomorrow are growing more and more and are highly specialised. In order to fulfil those requirements the applications outside are intensifying especially in the range of test vehicles. The test runs take place under harsh ambient conditions for example in arctic areas. As a consequence the requirements on the harnesses are also becoming harder. On this basis SAB has developed a USB 2.0 cable that is appropriate for permanent flexible use at -25°C.
Additional information
Further cable types are possible on request for example with regard to:
- further dimensions
- other sheath colours and marking
- different cable lengths
Free choice of cable harness:
- USB-A-plug
- USB-A-socket
- USB-B-plug
- USB-B-socket
Construction
| conductor | tinned copper strands / silver-plated copper strands |
|---|---|
| Core insulation | Polymer |
| sreen | alu foil / tinned copper braiding |
| outer sheath | Besilen® |
| sheath colour | black (RAL 9011) |
| dimension | (2 x 0,22 mm²)ST + 2 x 0,50 mm² |
tinned copper strands / silver-plated copper strands
Polymer
alu foil / tinned copper braiding
Besilen®
black (RAL 9011)
(2 x 0,22 mm²)ST + 2 x 0,50 mm²
Technical data
| temperature range | flexible application: -25°C/+180°C fixed laying: -40°C/+180°C |
|---|---|
| special feature | flexible at low temperatures |
| outer diameter | approx. 6,0 mm |
flexible application: -25°C/+180°C
fixed laying: -40°C/+180°C
flexible at low temperatures
approx. 6,0 mm
