Harnessed COAX cable

with BNC connector assembly

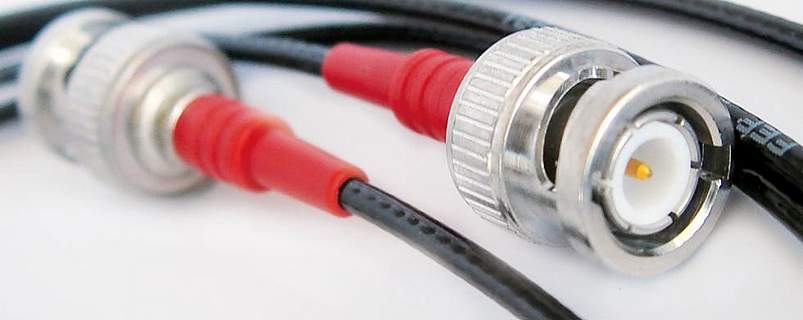

Harnessed COAX cable with BNC connector assembly

Harnessed COAX cable with BNC connector assembly

Application

SAB BRÖCKSKES offers different cable harnesses for high frequency technique (radio, audio and video communication), among others coax cables with different bayonet connectors (BNC). BNC connectors are connected to each other via bayonet locks and therefore offer a secure plug connection. Also for this cable harness you can choose different cable and connector types in order to adapt the product to your special requirement profile. SAB has specialised on the particular industrial demands and has developed the corresponding solutions.

Additional information

Among others the following cable types belong to our delivery programme:

  • RG 316
  • RG 58
  • RG 179
  • coax cables with 50 Ω or 75 Ω
  • cables with heat resistant silicone free outer sheath up to +125°C



Please choose from the following plug connectors:

  • Huber & Suhner BNC plug connector
  • Telegärtner BNC plug connector
  • Amphenol BNC plug connector
  • insulated and uninsulated BNC plug connector

Construction

conductor

silver-plated copper strands 0,55 mm²

core insulation

Polymer

screen

silver-plated copper braiding

outer sheath

special material

sheath colour

black (RAL 9005)

conductor

silver-plated copper strands 0,55 mm²

core insulation

Polymer

screen

silver-plated copper braiding

outer sheath

special material

sheath colour

black (RAL 9005)

Technical data

temperature range

flexible application: -40°C/+125°C

fixed laying: -50°C/+125°C

short-time use: +150°C

special feature

silicone free, 75 Ω

temperature range

flexible application: -40°C/+125°C

fixed laying: -50°C/+125°C

short-time use: +150°C

special feature

silicone free, 75 Ω
