Harnessed COAX cable

with high frequency plug connector assembly

Harnessed COAX cable with high frequency plug connector assembly

Harnessed COAX cable with high frequency plug connector assembly

Application

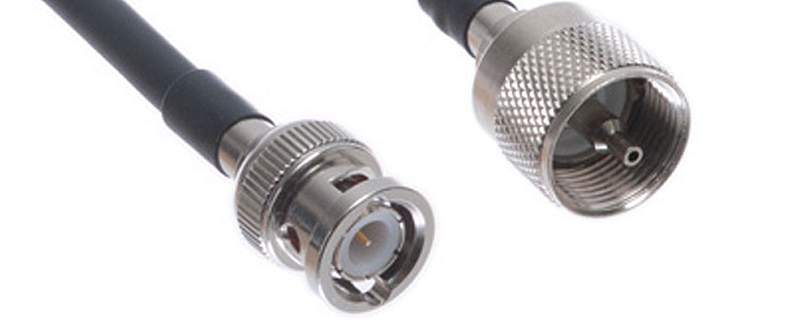

Besides cable harnesses with BNC plug connectors, SAB BRÖCKSKES offers further harnesses for high frequency applications for example coax cables with UHF-, mini-UHF or SMB connectors. We don´t have a standard product range but special products for individual application ranges. These special applications are for example the requirements on temperature or flexibility.

Additional information

Among others the following cable types belong to our delivery program:

  • Low-Noise Cable
  • RG 316
  • RG 58
  • RG 179
  • coax cables with 50 Ω or 75 Ω
  • cables with heat resistant, flexible outer sheath up to +150°C



Please choose from the following plug connectors:

  • UHF plug connector
  • mini UHF plug connector
  • MMCX plug connector
  • SMB plug connector
  • ...

Construction

conductor

silver-plated strands 0,55 mm²

core insulation

Polymer

screen

silver-plated copper braiding

outer sheath

special material

sheath colour

black (RAL 9005)

conductor

silver-plated strands 0,55 mm²

core insulation

Polymer

screen

silver-plated copper braiding

outer sheath

special material

sheath colour

black (RAL 9005)

Technical data

temperature range

flexible application: -40°C/+125°C

fixed laying: -50°C/+125°C

short-time use: +150°C

special feature

silicone free, 75 Ω

temperature range

flexible application: -40°C/+125°C

fixed laying: -50°C/+125°C

short-time use: +150°C

special feature

silicone free, 75 Ω

Highly flexible cables according to your special requirements

Family business for construction and production since 1947

Please send us your inquiry
