Measuring cable with injection moulded anti-kink protection
Application

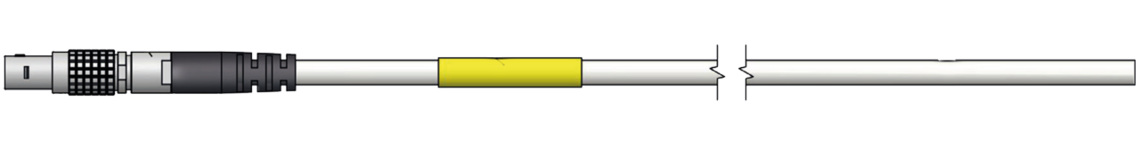

Measuring cable with injection moulded anti-kink protection and Lemo plug size 0B.
Application as kink protection for example as measuring cable in test environments. The kink protection avoids
the bending of the cable and is permanently connected with the plug and the cable.
Outstanding features
- at present available for the size 0B in combination with a cable Ø 4,0mm ± 0,10mm
- alternative plug sizes and cable dimensions are possible
- tamper-proof – no detaching of the clamping nut
- type FGG – straight version
- further types in different versions possible!
Additional information
pin assignment
| core | male connector, 9 pins |
|---|---|
| gn | pin 1 |
| ge | pin 2 |
| ws | pin 3 |
| br | pin 4 |
| - | pin 5 |
| - | pin 6 |
| - | pin 7 |
| gr | pin 8 |
| - | pin 9 |
| screen | housing |
