Multi bus Cable

with 17-pole socket and plug connector

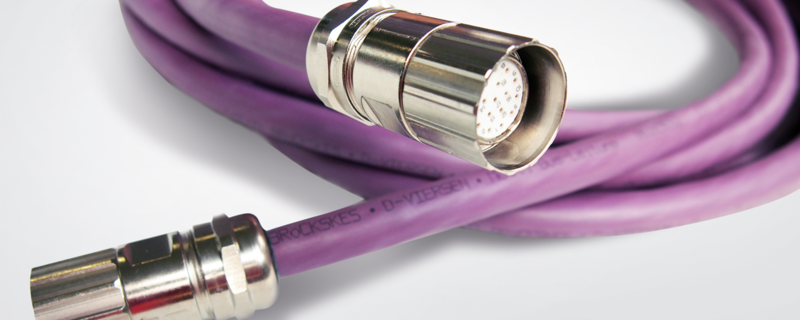

Multi Bus Cable with 17-pole socket and male connector

Multi Bus Cable with 17-pole socket and male connector

Application

This cable harnessing product is used in the robot industry as highly flexible type for the robot cable-hose assembly or as standard flexible type connected to the robot base. Both types guarantee full protection against electro magnetic interference. M23 round plug connectors in straight and angle version are used. Metal or plastic types are available.

Additional information

Further cable types are possible on request for example:

  • Besilen® flexible with cold temperatures to -40°C / Besilen® heat resistant up to +220°C
  • sheath material up to 150°C, silicone-free
  • different cable lengths
  • various sheath colours and marking
  • different dimensions, sections and number of cores (dependant on plug)


You can choose from the following plug connectors:

  • Binder plug connector
  • Hummel plug connector
  • Weidmüller plug connector
  • Intercontec plug connector
  • Phoenix plug connector



Cable variations for example:

  • 2 x (2 x 0,25 mm²)D + 2 x (2 x 0,34 mm²)D + 1,0 mm² + (2 x 0,29 mm²)D + 2 x (2 x 1,0 mm²)D



Construction

Connection ends

S1: socket connector, 17 pole



S2: male connector, 17 pole

Connection ends

S1: socket connector, 17 pole



S2: male connector, 17 pole

Technical data

Cable type

Multi Bus Cable

2 x (2 x 0,25 mm²)D + 2 x (2 x 034 mm²)D + 1,0 mm² + (2 x 0,29 mm²)D + 2 x (2 x 1,0 mm²)D

Cable type

Multi Bus Cable

2 x (2 x 0,25 mm²)D + 2 x (2 x 034 mm²)D + 1,0 mm² + (2 x 0,29 mm²)D + 2 x (2 x 1,0 mm²)D

Highly flexible cables according to your special requirements
