RG 316

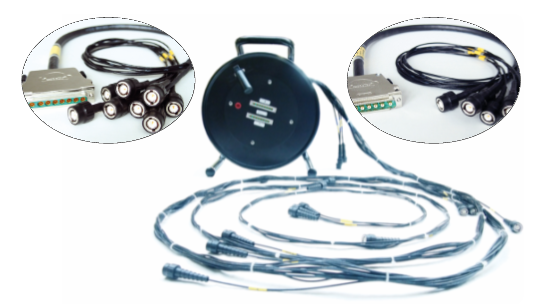

Multiple coaxial cable with total screen for the easy cabling of 8 or 16 measuring channels

Application

Measuring tasks are becoming more and more complex and the number of measuring points to be evaluated is increasing. This causes a bigger cabling effort. In order to simplify this task, SAB Bröckskes has developed two new cable types. RG 316 - Multiple coaxial cables are highly flexible and robust at the same time. With the used PUR outer sheath temperatures of up to + 125 ° C (2500h) can be achieved. For long distances the cables can be mounted on cable drums which can be handeled easily.

Additional information

Available as plug and measuring solution with harnessed BNC connector assembly resp. SUB-D connectors.

Construction

conductor

tinned copper strands

core insulation

FEP

screen

tinned copper braiding

inner sheath

TPE, black numbered

total screen

tinned copper braiding

outer sheath

PUR

sheath colour

black (RAL 9005)

conductor

tinned copper strands

core insulation

FEP

screen

tinned copper braiding

inner sheath

TPE, black numbered

total screen

tinned copper braiding

outer sheath

PUR

sheath colour

black (RAL 9005)

Technical data

voltage

900 V

temperature range

flexible application: -40°C/+90°C

fixed laying: -50°C/+90°C

short-time use: +125°C (2500h)

characteristic impedance

50 Ω ± 5 Ω

frequency range

max. 3 GHz

voltage

900 V

temperature range

flexible application: -40°C/+90°C

fixed laying: -50°C/+90°C

short-time use: +125°C (2500h)

characteristic impedance

50 Ω ± 5 Ω

frequency range

max. 3 GHz

Dimensions

item no. No. of cores x
cross section
Outer-ø ± 5% Copper figure Cable weight ≈
360090258 x 26 AWG11.6132189 Send inquiry
3600902616 x 26 AWG15253.2339 Send inquiry
item no.
No. of cores x
cross section
Outer-ø ± 5%
Copper figure
Cable weight ≈
36009025
8 x 26 AWG
11.6
132
189
36009026
16 x 26 AWG
15
253.2
339

Other dimensions and colours are possible on request.
