BNC sensor cable

with circular connector assembly

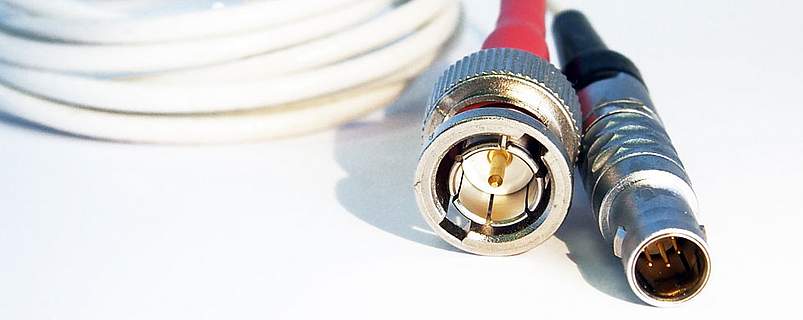

BNC sensor cable with circular connector assembly

BNC sensor cable with circular connector assembly

Application

Harnessed sensor cable with a round plug connector and a BNC plug for the linking of the sensor with the module. The harnessed product can be designed according to the individual application. There are different plug and cable types available.

Additional information

Among others the following cable types belong to our delivery program:

  • RG 316
  • RG 58
  • RG 179
  • coax cables with 50 Ω or 75 Ω
  • cables with heat resistant, silicone free outer sheath up to +125°C



You can choose from the following plug connectors:

  • Huber & Suhner BNC plug connector
  • Telegärtner BNC plug connector
  • Insulated and not insulated BNC plug connector
  • Lemo round plug connector
  • ODU round plug connector

Construction

conductor

silver plated copper strands 0,55 mm²

core insulation

Polymer

screen

silver plated copper braiding

outer sheath

special material

sheath colour

white (RAL 9010)

Technical data

temperature range

flexible application: -40°C/+125°C

fixed laying: -50°C/+125°C

short-time use: +150°C

special features

silicone free, 75 Ω

Highly flexible cables according to your special requirements
