Sensor cable

with circular connector assembly

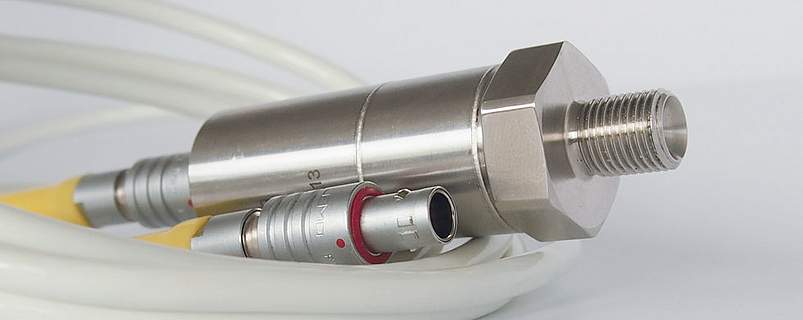

Sensor cable with circular connector assembly

Sensor cable with circular connector assembly

Application

For different products in sensor technique, SAB BRÖCKSKES offers harnessed sensor cables. It doesn´t matter if it concerns pressure, acceleration or flow sensors, we have the adequate solution in our product portfolio. One type is the cable harness with round connectors. These can be adapted with regard to number of poles, encoding, size, etc. to your special application. We can also offer the cable harness with one free end.



Additional information

Further cable types are possible on request for example:

  • Besilen® flexible with cold temperatures to -40°C / Besilen® heat resistant up to +220°C
  • sheath material up to 150°C, silicone free
  • different cable lengths
  • various sheath colours and marking
  • different dimensions, sections and number of cores (dependant on plug)



You can choose from different plug connectors:

  • Lemo connector
  • ODU connector
  • Fischer connector
  • Yamaichi connector



Cable variations for example:

  • 2 x 2 x AWG 24 + x AWG 24/7
  • 7 x 0,15 mm²

Construction

conductor

tinned copper strands

core insulation

Polymer

screen

tinned copper braiding

outer sheath

special material

sheath colour

white (RAL 9010)

conductor

tinned copper strands

core insulation

Polymer

screen

tinned copper braiding

outer sheath

special material

sheath colour

white (RAL 9010)

Technical data

temperature range

flexible application: -40°C/+90°C

fixed laying: -50°C/+90°C

short-time use: +125°C

special features

silicone free

temperature range

flexible application: -40°C/+90°C

fixed laying: -50°C/+90°C

short-time use: +125°C

special features

silicone free

Highly flexible cables according to your special requirements
