Special connection cable

with 320-pole port connector and 50-pole Sub-D male connector

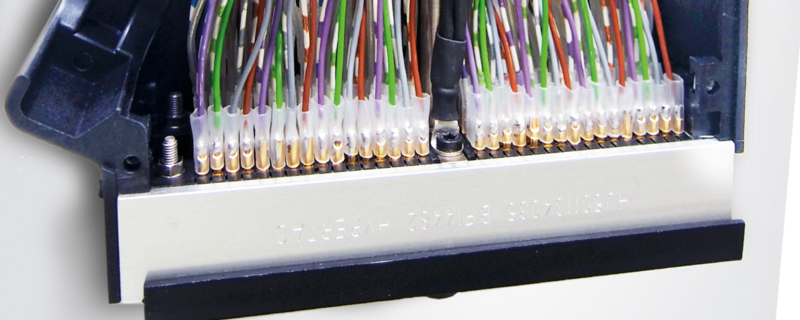

Special connection cable with 320-pole port connector and 50-pole Sub-D male connector

Special connection cable with 320-pole port connector and 50-pole Sub-D male connector

Application

This cable harnessing product is used in test equipment. This test equipment is used for the electric function control with the production of wafers . The SAB cable harness is applied to transfer the voltage from the electronics to the specimen. Herewith, currents within the Nano ampere range are treated. It is important for this cable harnessing product that a constant current is available and the soiling of the contact surface by greases has to be avoided.


Additional information

Cable variations for example:

  • multi core cables, screened

Construction

conductor

tinned copper strands

core insulation

TPK

Screen

alu foil

outer sheath

PUR

sheath colour

black (RAL 9005)

conductor

tinned copper strands

core insulation

TPK

Screen

alu foil

outer sheath

PUR

sheath colour

black (RAL 9005)

Technical data

temperature range

flexible application: -20°C/+60°C

fixed laying: -20°C/+60°C

temperature range

flexible application: -20°C/+60°C

fixed laying: -20°C/+60°C
