Connection cable

between CAN-BUS interface and module

Connection cable between CAN-BUS interface and module

Connection cable between CAN-BUS interface and module

Application

The SAB BRÖCKSKES delivery program also includes cable harnesses that are used as connection cable between CAN-BUS interfaces and different modules (for example thermo- or A/D module). There is the possibility to choose between different cable types and plug combinations. The connectors can be adapted to the module with regard to size, type, number of pins and pin configuration. Furthermore, different cables are available that are suitable for different applications.

Additional information

Further cable types are possible on request for example:

  • sheath material up to +125°C, silicone free
  • different cable lengths
  • variations regarding sheath colour and marking
  • different dimensions, sections and numbers of cores (dependant on plug)



Connection ends for example:

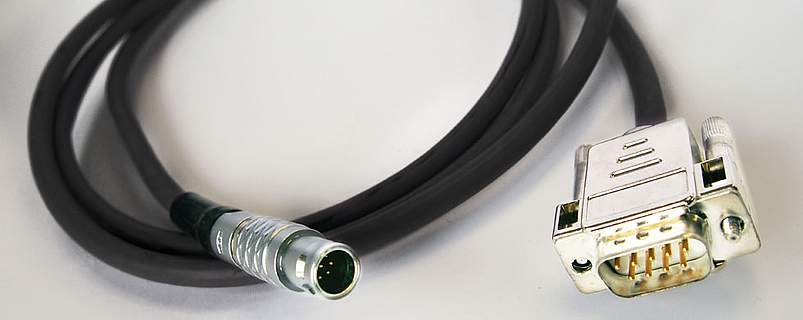

  • round plug connector 7-pole SUB-D 9-pole



Cable variations for example:

  • 2 x 0,15 mm²
  • 7 x 0,15 mm²



You can choose from the following plug connectors:

  • Lemo connector
  • Yamaichi connector
  • ODU connector
  • different SUB D connector
  • Fischer connector (e.g. 9-pole/ 25-pole)

Construction

conductor

tinned copper strands

core insulation

Polymer

screen

tinned copper braiding

outer sheath

special material

sheath colour

black (RAL 9005)

conductor

tinned copper strands

core insulation

Polymer

screen

tinned copper braiding

outer sheath

special material

sheath colour

black (RAL 9005)

Technical data

temperature range

flexible application: -40°C/+125°C

fixed laying: -50°C/+125°C

short-time use: +150°C

special feature

silicone free

temperature range

flexible application: -40°C/+125°C

fixed laying: -50°C/+125°C

short-time use: +150°C

special feature

silicone free

Highly flexible cables according to your special requirements
