CATLine Cat. 5/Cat. 6A Ethernet Helix Cable

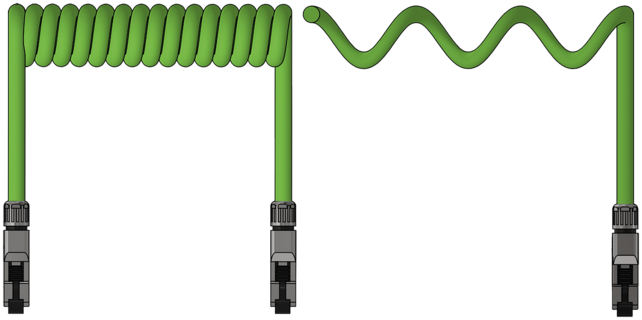

Helix cable with radial/axial outlets and RJ45 connector at one or both ends
Application
Cat. 5/6A Ethernet cable as helix cable for mobile use on machines and systems.
Additional information
connection diagram/pin assignment | ||
|---|---|---|
end 1 | TIA 568-B | end 2 |
RJ45 | core | RJ45 |
pin 1 | white-orange | pin 1 |
pin 2 | orange | pin 2 |
pin 3 | white-green | pin 3 |
pin 4 | green | pin 4 |
pin 5 | white-brown | pin 5 |
pin 6 | brown | pin 6 |
pin 7 | white-blue | pin 7 |
pin 8 | blue | pin 8 |
housing | screen | housing |
Cable characteristics
| SAB item no. | Cat. 5: L1579-9013 Cat. 6A: L1679-9008 |
|---|---|
| Dimension | 4 x 2 x 26 AWG |
| Conductor | bare copper strands, fine wires |
| Insulation | SABIX® |
| Screen | tinned copper braiding |
| Outer sheath | PUR, green (similar RAL 6018) |
| Outer diameter | L1579-9013: approx. 6,9 mm L1679-6008: approx. 8,8 mm |
Cat. 5: L1579-9013
Cat. 6A: L1679-9008
4 x 2 x 26 AWG
bare copper strands, fine wires
SABIX®
tinned copper braiding
PUR, green (similar RAL 6018)
L1579-9013: approx. 6,9 mm
L1679-6008: approx. 8,8 mm
Technical Data
| Temperature range | -40 °C to +90 °C |
|---|---|
| Voltage | max. 90 V |
| Connection end 1 | mounted RJ45 male connector |
| Connection end 2 | mounted RJ45 male connector |
| Marking | yellow marking tube with marking: item number - order number - length - certification mark |
-40 °C to +90 °C
max. 90 V
mounted RJ45 male connector
mounted RJ45 male connector
yellow marking tube with marking: item number - order number - length - certification mark
