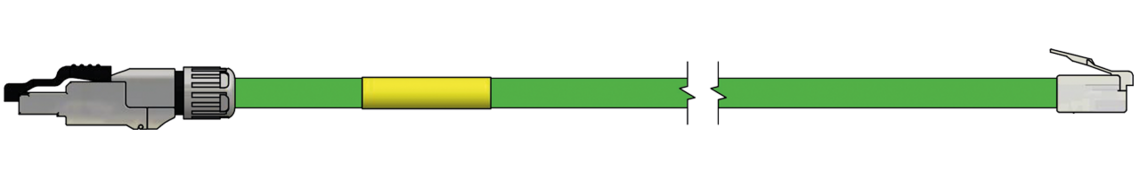

Catline Cat. 6A S - IE connection cable

Industrial Ethernet cable, suitable for cable tracks, with mounted RJ45 connector and mounted RJ12 connector

Application

Connection cable between PC and IP cameras.

Additional information

item no. with length code
lengthitem no.: S1677-4044-_ _ _ _ _
0,5 m00050
1,0 m00100
2,0 m00200
3,0 m00300
5,0 m00500
7,5 m00750
10,0 m01000

Cable characteristics

SAB item no.

L1677-4631

Dimension

4 x 2 x 26 AWG

Conductor

bare copper strands, fine wires

Insulation

special polymer

Screen

alu foil and tinned copper braiding

Outer sheath

PUR, green (similar RAL 6018)

Outer diameter

approx. 7,1 mm

Approvals

UL/CSA

Oil resistance

TMPU acc. to EN50363-10-2 + VDE 0207-363-10-2

Min. bending radius

flexible application: 5 x d

continuously flexible: 15 x d

SAB item no.

L1677-4631

Dimension

4 x 2 x 26 AWG

Conductor

bare copper strands, fine wires

Insulation

special polymer

Screen

alu foil and tinned copper braiding

Outer sheath

PUR, green (similar RAL 6018)

Outer diameter

approx. 7,1 mm

Approvals

UL/CSA

Oil resistance

TMPU acc. to EN50363-10-2 + VDE 0207-363-10-2

Min. bending radius

flexible application: 5 x d

continuously flexible: 15 x d

Technical Data

Temperature range

-20°C to +70°C

Connection side 1

RJ45 connector, mounted, Cat. 6A, 8-pole with cable gland

Connection side 2

RJ12 connector, mounted

Marking

yellow marking tube with marking:

item number - order number - length - certification mark

Temperature range

-20°C to +70°C

Connection side 1

RJ45 connector, mounted, Cat. 6A, 8-pole with cable gland

Connection side 2

RJ12 connector, mounted

Marking

yellow marking tube with marking:

item number - order number - length - certification mark
