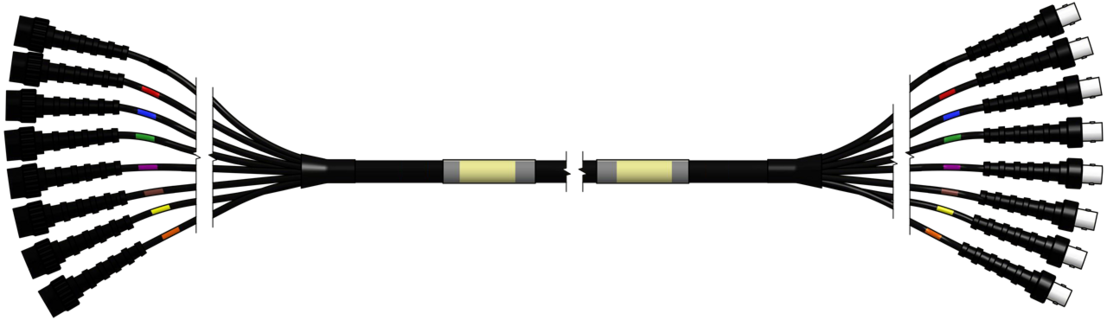

Coaxial Connecting Cable RG 316 - 8-plug

with BNC male and female connectors 50 Ω

Application

multiple coaxial cable

Outstanding features

Cable characteristics:

  • easy handling
  • mechanically very rugged
  • space-saving
  • +125 °C / 2500h

Additional information

SAB marking:
item number, order number, length

Cable data

Construction

8 x AWG26

Insulation

TPFK

Screen

single screen > 80%

Inner sheath

TPE

Stranding

together

Screen

overall screen > 80%

Outer sheath

PUR 420, colour black, mat surface

Outer diameter

approx. 11,6 mm

Min. bending radius

15 x d

Peak operating voltage

900 V

Temperature range

-40/+90 °C (+125 °C / 2500h)

Oil resistance

very good - TMPU acc. to EN50363-10-2

Construction

8 x AWG26

Insulation

TPFK

Screen

single screen > 80%

Inner sheath

TPE

Stranding

together

Screen

overall screen > 80%

Outer sheath

PUR 420, colour black, mat surface

Outer diameter

approx. 11,6 mm

Min. bending radius

15 x d

Peak operating voltage

900 V

Temperature range

-40/+90 °C (+125 °C / 2500h)

Oil resistance

very good - TMPU acc. to EN50363-10-2

Connector

Side 1

BNC male connector 50 Ω

Side 2

BNC female connector 50 Ω

Side 1

BNC male connector 50 Ω

Side 2

BNC female connector 50 Ω

Configuration example

item no. length
S3600-4089-00200200 cm Send inquiry
item no.
length
S3600-4089-00200
200 cm

Other lengths on request.

Customized cable assembly according to your wishes.
