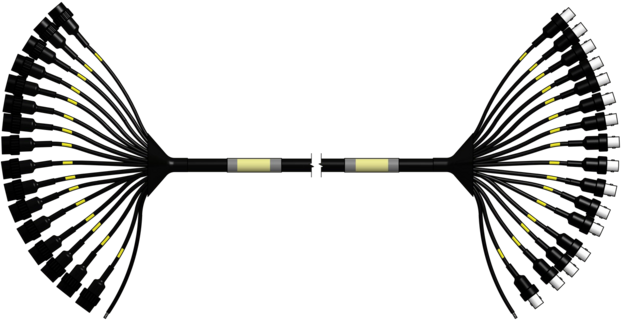

Coaxial connecting cable RG 316 - 16-plug

with BNC male and female connectors 50 Ω

Download data sheet for Coaxial connecting cable RG 316 - 16-plug

Questions about our products?

Application

multiple coaxial cable

Outstanding features

Cable characteristics:

easy handling
mechanically very rugged
space-saving
+125 °C / 2500h

Additional information

Configuration example:

item no.	length „L“ in cm
S3600-4073-01500	1500

Cable data

Construction	16 x AWG26
Insulation	TPFK
Screen	single screen > 80%
Inner sheath	TPE
Stranding	together
Screen	overall screen > 80%
Outer sheath	PUR 420, colous black, mat surface
Outer diameter	approx. 15,0 mm
Min. bending radius	15 x d
Peak operating voltage	900 V
Temperature range	-40/+90 °C (+125 °C / 2500h)
Oil resistance	very good - TMPU acc. to EN50363-10-2

Construction

16 x AWG26

Insulation

TPFK

Screen

single screen > 80%

Inner sheath

TPE

Stranding

together

Screen

overall screen > 80%

Outer sheath

PUR 420, colous black, mat surface

Outer diameter

approx. 15,0 mm

Min. bending radius

15 x d

Peak operating voltage

900 V

Temperature range

-40/+90 °C (+125 °C / 2500h)

Oil resistance

very good - TMPU acc. to EN50363-10-2

Connector

side 1	BNC male connector 50 Ω
side 2	BNC female connector 50 Ω

side 1

BNC male connector 50 Ω

side 2

BNC female connector 50 Ω
