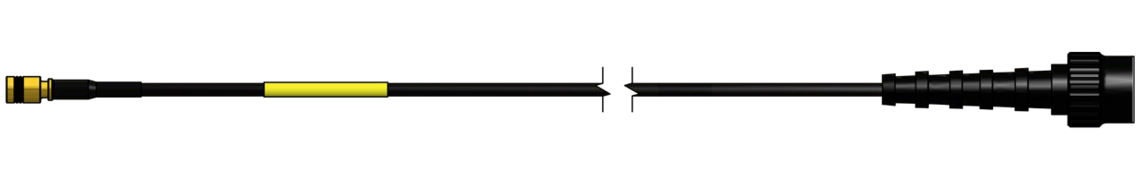

Coaxial Connecting Cable
with BNC and SMB connector
Application
coaxial cable as connection between sensor and measuring device
Outstanding features
- excellent temperature resistance and flexibility at low temperatures
- excellent electrical insulating characteristics with low, nearly frequency-independent dielectric characteristics
Additional information
SAB marking:
item number, order number, length
Cable data
| Construction | AWG 26/7 |
|---|---|
| Insulation | FEP |
| Screen | tinned copper braiding |
| Outer sheath | TPE |
| Outer diameter | approx. 1,9 mm |
| Min. bending radius | 7,5 x d |
| Peak operating voltage | 900 V |
| Temperature range | fixed laying: -50/+90°C flexible application: -40/+90°C |
Construction
AWG 26/7
Insulation
FEP
Screen
tinned copper braiding
Outer sheath
TPE
Outer diameter
approx. 1,9 mm
Min. bending radius
7,5 x d
Peak operating voltage
900 V
Temperature range
fixed laying: -50/+90°C
flexible application: -40/+90°C
Connector
| Side 1 | SMB connector 50 Ω |
|---|---|
| Side 2 | BNC connector 50 Ω |
Side 1
SMB connector 50 Ω
Side 2
BNC connector 50 Ω
Configuration example
| item no. | length | |
|---|---|---|
| S3600-4092 | 200 cm | Send inquiry |
item no.
length
Other lengths on request.
