SAB Kabel

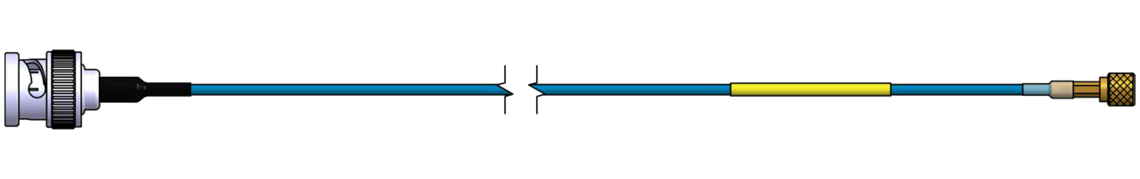

Coaxial connecting cable

with BNC male connector and Microdot connector

Application

coaxial cable as connection between sensor and measuring device

Outstanding features

  • low noise
  • temperature resistant up to +250 °C
  • oil and chemical resistant - very good

Additional information

Configuration example:


item no.  length „L“  in cm

S3620-4016-00300
300

Cable data

Construction

1 x 0,25 mm

Insulation

PFA

Screen

tinned copper braiding

Outer sheath

PFA

Outer diameter

approx. 1,9 mm

Min. bending radius

10 d

Peak operating voltage

375 V

Temperature range

-40/+70 °C

Construction

1 x 0,25 mm

Insulation

PFA

Screen

tinned copper braiding

Outer sheath

PFA

Outer diameter

approx. 1,9 mm

Min. bending radius

10 d

Peak operating voltage

375 V

Temperature range

-40/+70 °C

Connector

side 1

BNC male connector 50 Ω

side 2

Microdot connector

side 1

BNC male connector 50 Ω

side 2

Microdot connector
