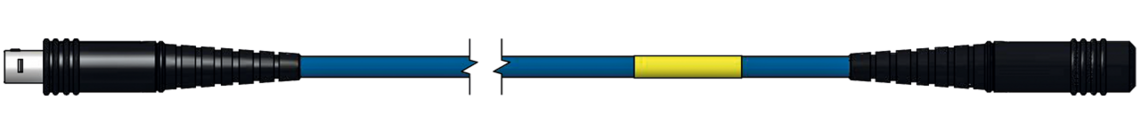

ETK extension
with Lemo male connector 4-pin and Lemo female connector 4-pole
Application
Extension of ETK interface cable and connection to ETK interface module for example ES59x.
Individual marking by shrinkable sleeve as for example with internal material no. or barcode.
Additional information
SAB marking:
item no., order no., length
Survey measuring chain
| Interface cable | ETK interface cable |
|---|---|
| Extension cable | ETK extension cablel |
| Interface module | ETK interface module for example ES59x |
ETK interface cable
ETK extension cablel
ETK interface module for example ES59x
Connector
| Side 1 | Lemo male connector 4-pin |
|---|---|
| Side 2 | Lemo female connector 4-pole |
Lemo male connector 4-pin
Lemo female connector 4-pole
Cable data
| Dimension | 2 x 2 x 0,22 mm² |
|---|---|
| Isolation | TPFK |
| Screen | global braiding 100% |
| Outer sheath | Besilen®, colour blue |
| Outer diameter | approx. 5,8 mm |
| Min. bending radius | 10 x d |
| Peak operating voltage | max. 350 V |
| Temperature range | fixed laying: -40°C/+180°C flexible application: -25°C/+180°C |
2 x 2 x 0,22 mm²
TPFK
global braiding 100%
Besilen®, colour blue
approx. 5,8 mm
10 x d
max. 350 V
fixed laying: -40°C/+180°C
flexible application: -25°C/+180°C
Configuration example
| item no. | length | |
|---|---|---|
| S3833-4568-00100 | 100 cm | Send inquiry |
Other lengths on request.
