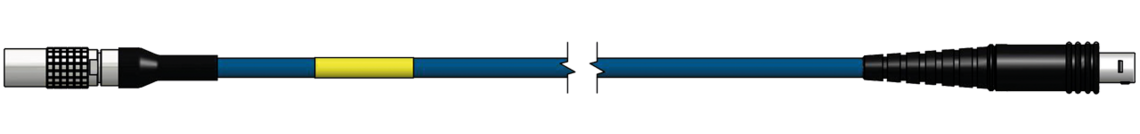

ETK - FETK - ETK adapter
with Lemo male connector 10-pin and Lemo male connector 4-pin
Application
Connection of FETK cable CBE.260.1 with ETK control device.*
Individual marking by shrinkable sleeve as for example with internal material no. or barcode.
*Note: If the FETK cable is layed in the vehicle and is used as interface cable between ETK control device and ETK interface module the adaption is necessary towards control device and interface module.
Additional information
SAB marking:
item no., order no., length
Measuring chain
| Control device | ETK control device |
|---|---|
| Adaption | ETK-FETK-ETK adapter cable |
| Interface cable | FETK interface cable |
| Adaption | FETK - ETK adapter cable |
| Interface module | ETK interface module for example ES59x FETK interface module for example ES89x |
ETK control device
ETK-FETK-ETK adapter cable
FETK interface cable
FETK - ETK adapter cable
ETK interface module for example ES59x
FETK interface module for example ES89x
Connector
| Side 1 | Lemo male connector 10-pin |
|---|---|
| Side 2 | Lemo male connector 4-pin |
Lemo male connector 10-pin
Lemo male connector 4-pin
PUR Cable data
| Dimension | 2 x 2 x 0,22 mm² |
|---|---|
| Insulation | TPFK |
| Screen | global braiding 100% |
| Outer sheath | PUR, colour blue, matt surface |
| Outer diameter | approx. 5,5 mm |
| Min. bending radius | 10 x d |
| Peak operating voltage | max. 350 V |
| Temperature range | -40°C/+90°C (+125°C / 2500h) |
| Oil resistance | very good - TMPU acc. to EN50363-10-2 |
2 x 2 x 0,22 mm²
TPFK
global braiding 100%
PUR, colour blue, matt surface
approx. 5,5 mm
10 x d
max. 350 V
-40°C/+90°C (+125°C / 2500h)
very good - TMPU acc. to EN50363-10-2
Silicone Cable data
| Dimension | 2 x 2 x 0,22 mm² |
|---|---|
| Insulation | TPFK |
| Screen | global braiding 100% |
| Outer sheath | Besilen®, colour blue |
| Outer diameter | approx. 5,8 mm |
| Min. bending radius | 10 x d |
| Peak operating voltage | max. 350 V |
| Temperature range | fixed laying: -40°C/+180°C flexible application: -25°C/+180°C |
2 x 2 x 0,22 mm²
TPFK
global braiding 100%
Besilen®, colour blue
approx. 5,8 mm
10 x d
max. 350 V
fixed laying: -40°C/+180°C
flexible application: -25°C/+180°C
Configuration examples
| item no. | Sheath material | length | |
|---|---|---|---|
| S3833-4493-00030 | PUR | 30 cm | Send inquiry |
| S3833-4500-00030 | silicone | 30 cm | Send inquiry |
Other lengths on request.
