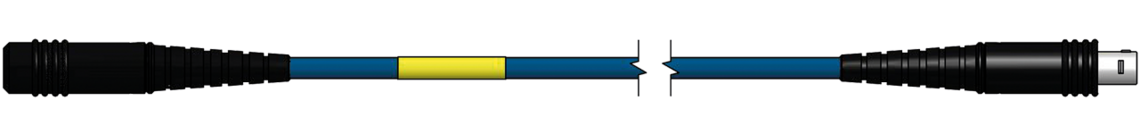

ETK - FETK adapter
with Lemo female connector 4-pole and Lemo male connector 10-pin
Application
Connection of ETK cable CBM150.1 with FETK interface module ES89x.
Individual marking by shrinkable sleeve as for example with internal material no. or barcode.
Additional information
SAB marking:
item no., order no., length
Survey measuring chain
| Control device | ETK control device |
|---|---|
| Interface cable | ETK interface cable |
| Adaptation | ETK - FETK adapter cable |
| Interface module | FETK interface module for example ES89x. |
ETK control device
ETK interface cable
ETK - FETK adapter cable
FETK interface module for example ES89x.
Connector
| Side 1 | Lemo female connector 4-pole |
|---|---|
| Side 2 | Lemo male connector 10-pin |
Lemo female connector 4-pole
Lemo male connector 10-pin
PUR cable data
| Dimension | 2 x 2 x 0,22 mm² |
|---|---|
| Insulation | TPFK |
| Screen | global braiding 100% |
| Outer sheath | PUR, colour blue, matt surface |
| Outer diameter | approx. 5,5 mm |
| Min. bending radius | 10 x d |
| Peak operating voltage | max. 350 V |
| Temperature range | -40°C/+90°C (+125°C / 2500h) |
| Oil resistance | very good - TMPU acc. to EN50363-10-2 |
2 x 2 x 0,22 mm²
TPFK
global braiding 100%
PUR, colour blue, matt surface
approx. 5,5 mm
10 x d
max. 350 V
-40°C/+90°C (+125°C / 2500h)
very good - TMPU acc. to EN50363-10-2
Silicone cable data
| Dimension | 2 x 2 x 0,22 mm² |
|---|---|
| Insulation | TPFK |
| Screen | global braiding 100% |
| Outer sheath | Besilen®, colour blue |
| Outer diameter | approx. 5,8 mm |
| Min. bending radius | 10 x d |
| Peak operating voltage | max. 350 V |
| Temperature range | fixed laying: -40°C/+180°C flexible application: -25°C/+180°C |
2 x 2 x 0,22 mm²
TPFK
global braiding 100%
Besilen®, colour blue
approx. 5,8 mm
10 x d
max. 350 V
fixed laying: -40°C/+180°C
flexible application: -25°C/+180°C
Configuration examples
| item no. | Sheath material | length | |
|---|---|---|---|
| S3833-4499-00030 | PUR | 30 cm | Send inquiry |
| S3833-4267-00030 | silicone | 30 cm | Send inquiry |
Other lengths on request.
