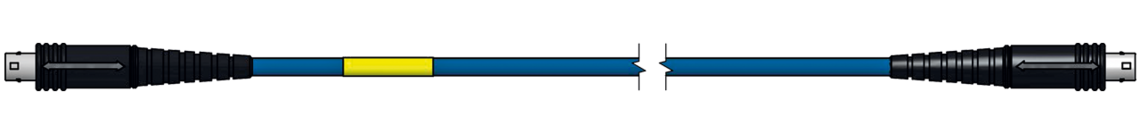

ETK interface cable
with Lemo male connector 4-pin at both sides
Application
Connection of ETK control device with ETK interface module for example ES59x.
Individual marking by shrinkable sleeve as for example with internal material no. or barcode.
Additional information
SAB marking:
item no., order no., length
Survey measuring chain
| Control device | ETK control device |
|---|---|
| Interface cable | ETK interface cable |
| Interface module | ETK interface module for example ES59x |
ETK control device
ETK interface cable
ETK interface module for example ES59x
Connector
| Side 1 | Lemo male connector 4-pin |
|---|---|
| Side 2 | Lemo male connector 4-pin |
Lemo male connector 4-pin
Lemo male connector 4-pin
PUR cable data
| Dimension | 2 x 2 x 0,22 mm² |
|---|---|
| Isolation | TPFK |
| Screen | global braiding 100% |
| Outer sheath | PUR, colour blue, matt surface |
| Outer diameter | approx. 5,5 mm |
| Min. bending radius | 10 x d |
| Peak operating voltage | max. 350 V |
| Temperature range | -40°C/+90°C (+125°C / 2500h) |
| Oil resistance | very good - TMPU acc. to EN50363-10-2 |
2 x 2 x 0,22 mm²
TPFK
global braiding 100%
PUR, colour blue, matt surface
approx. 5,5 mm
10 x d
max. 350 V
-40°C/+90°C (+125°C / 2500h)
very good - TMPU acc. to EN50363-10-2
Silicone cable data
| Dimension | 2 x 2 x 0,22 mm² |
|---|---|
| Isolation | TPFK |
| Screen | global braiding 100% |
| Outer sheath | Besilen®, colour blue |
| Outer diameter | approx. 5,8 mm |
| Min. bending radius | 10 x d |
| Peak operating voltage | max. 350 V |
| Temperature range | fixed laying: -40°C/+180°C flexible application: -25°C/+180°C |
2 x 2 x 0,22 mm²
TPFK
global braiding 100%
Besilen®, colour blue
approx. 5,8 mm
10 x d
max. 350 V
fixed laying: -40°C/+180°C
flexible application: -25°C/+180°C
Configuration examples
| item no. | Sheath material | length | |
|---|---|---|---|
| S3833-4219-00100 | PUR | 100 cm | Send inquiry |
| S3833-4218-00100 | silicone | 100 cm | Send inquiry |
Other lengths on request.
