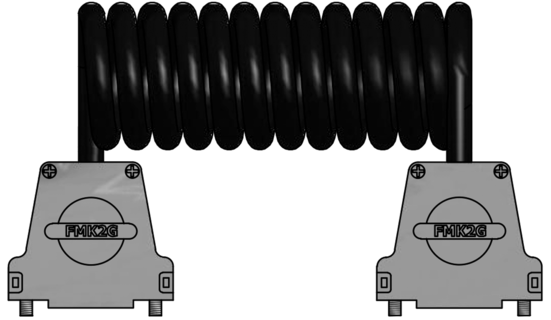

Helix Cable

with radial outlets and 15-pole Sub-D male connector and female connector

Questions about our products?

Technical Data

Temperature range

-35 °C to +85 °C

Voltage range

0 - 24 V

Connection side 1

Sub-D connector

Connection side 2

Sub-D connector

Temperature range

-35 °C to +85 °C

Voltage range

0 - 24 V

Connection side 1

Sub-D connector

Connection side 2

Sub-D connector

Cable characteristics

SAB item no.

L0803-9209

Dimension

(5x0,14 mm²+2x0,14mm²+4x(2x0,14mm²)D)D

Conductor

bare copper strands, fine wires

Insulation

TPE

Screen

wrapped with tinned copper braiding

Outer sheath

PUR, black (similar RAL 9005)

Outer diameter

approx. 7,9 mm

SAB item no.

L0803-9209

Dimension

(5x0,14 mm²+2x0,14mm²+4x(2x0,14mm²)D)D

Conductor

bare copper strands, fine wires

Insulation

TPE

Screen

wrapped with tinned copper braiding

Outer sheath

PUR, black (similar RAL 9005)

Outer diameter

approx. 7,9 mm

Item no. with length code

item no. length
S0803-4123-000300,3 m Send inquiry
S0803-4123-000500,5 m Send inquiry
S0803-4123-001001,0 m Send inquiry
S0803-4123-002002,0 m Send inquiry
S0803-4123-003003,0 m Send inquiry
S0803-4123-005005,0 m Send inquiry
S0803-4123-007507,5 m Send inquiry
S0803-4123-0100010,0 m Send inquiry
S0803-4123-0150015,0 m Send inquiry
S0803-4123-0200020,0 m Send inquiry
S0803-4123-0250025,0 m Send inquiry
item no.
length
S0803-4123-00030
0,3 m
S0803-4123-00050
0,5 m
S0803-4123-00100
1,0 m
S0803-4123-00200
2,0 m
S0803-4123-00300
3,0 m
S0803-4123-00500
5,0 m
S0803-4123-00750
7,5 m
S0803-4123-01000
10,0 m
S0803-4123-01500
15,0 m
S0803-4123-02000
20,0 m
S0803-4123-02500
25,0 m

Other lengths on request.
