S PN 667 - PN Connection Cable

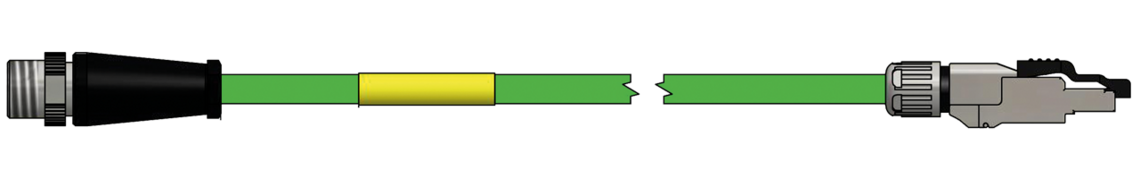

Profinet cable suitable for cable tracks with moulded M12 connector D-coded and mounted RJ45 connector

Application

PN system cable Cat.5 for continuously flexible application, e.g. in cable tracks in industrial environment.

Additional information

connection diagram/pin assignment

end 1

1:1

end 2

M12 connector

core

RJ45

pin 1

yellow

pin 1

pin 2

white

pin 2

pin 3

orange

pin 3





pin 4





pin 5

pin 4

blue

pin 6





pin 7





pin 8

housing

screen

housing

Cable characteristics

SAB item no.

L0667-2202

Dimension

2 x 2 x 22 AWG

Conductor

bare copper strands, 7 wires

Insulation

special polymer

Screen

alu foil and tinned copper braiding

Outer sheath

PUR, green (similar RAL 6018)

Outer diameter

6,5 mm ± 0,2 mm

Approvals

UL/CSA

Oil resistance

TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Min. bending radius

flexible application: 5 x d

continuously flexible: 15 x d

SAB item no.

L0667-2202

Dimension

2 x 2 x 22 AWG

Conductor

bare copper strands, 7 wires

Insulation

special polymer

Screen

alu foil and tinned copper braiding

Outer sheath

PUR, green (similar RAL 6018)

Outer diameter

6,5 mm ± 0,2 mm

Approvals

UL/CSA

Oil resistance

TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Min. bending radius

flexible application: 5 x d

continuously flexible: 15 x d

Technical Data

Temperature range

-40°C to +70°C

Voltage

50 V

Proctecting class

IP67 (M12, in streched condition), IP20 (RJ45)

Connection end 1

straight M12 male connector D-coded moulded with vibration protection

Connection end 2

mounted RJ45 male connector

Marking

yellow marking tube with marking:

item number - order number - length - certification mark

Temperature range

-40°C to +70°C

Voltage

50 V

Proctecting class

IP67 (M12, in streched condition), IP20 (RJ45)

Connection end 1

straight M12 male connector D-coded moulded with vibration protection

Connection end 2

mounted RJ45 male connector

Marking

yellow marking tube with marking:

item number - order number - length - certification mark

Item no. with length code

item no. length
S0667-4028-000500,5 m Send inquiry
S0667-4028-001001,0 m Send inquiry
S0667-4028-002002,0 m Send inquiry
S0667-4028-003003,0 m Send inquiry
S0667-4028-005005,0 m Send inquiry
S0667-4028-007507,5 m Send inquiry
S0667-4028-0100010,0 m Send inquiry
S0667-4028-0150015,0 m Send inquiry
S0667-4028-0200020,0 m Send inquiry
S0667-4028-0250025,0 m Send inquiry
item no.
length
S0667-4028-00050
0,5 m
S0667-4028-00100
1,0 m
S0667-4028-00200
2,0 m
S0667-4028-00300
3,0 m
S0667-4028-00500
5,0 m
S0667-4028-00750
7,5 m
S0667-4028-01000
10,0 m
S0667-4028-01500
15,0 m
S0667-4028-02000
20,0 m
S0667-4028-02500
25,0 m

Other lengths on request.

Customized cable assembly according to your wishes.
