S PN 667 - PN Connection Cable

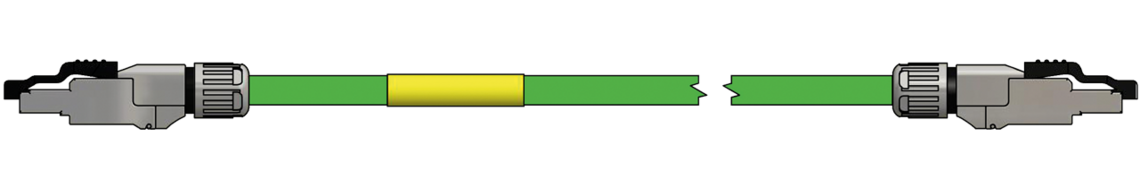

Profinet cable, suitable for cable tracks, with mounted RJ45 connector at both sides

Application

PN system cable Cat.5 for continuously flexible application, e.g. in cable tracks in industrial environment.

Additional information

connection diagram/pin assignment

side 1

1:1

side 2

RJ45

core

RJ45

pin 1

yellow

pin 1

pin 2

white

pin 2

pin 3

orange

pin 3

pin 4



pin 4

pin 5



pin 5

pin 6

blue

pin 6

pin 7



pin 7

pin 8



pin 8

housing

screen

housing

Cable characteristics

SAB item no.

L0667-2202

Dimension

2 x 2 x 22 AWG

Conductor

bare copper strands, 7 wires

Insulation

special polymer

Screen

alu foil and tinned copper braiding

Outer sheath

PUR, green (similar RAL 6018)

Outer diameter

6,5 mm ± 0,2 mm

Approvals

UL/CSA

Oil resistance

TMPU acc. to EN50363-10-2 + VDE 0207-363-10-2

Min. bending radius

flexible application: 5 x d

continuously flexible: 15 x d

SAB item no.

L0667-2202

Dimension

2 x 2 x 22 AWG

Conductor

bare copper strands, 7 wires

Insulation

special polymer

Screen

alu foil and tinned copper braiding

Outer sheath

PUR, green (similar RAL 6018)

Outer diameter

6,5 mm ± 0,2 mm

Approvals

UL/CSA

Oil resistance

TMPU acc. to EN50363-10-2 + VDE 0207-363-10-2

Min. bending radius

flexible application: 5 x d

continuously flexible: 15 x d

Technical Data

Temperature range

-40°C to +70°C

Voltage

50 V

Proctecting class

IP20

Connection side 1

RJ45 connector, mounted

Connection side 2

RJ45 connector, mounted

Marking

yellow marking tube with marking:

item number - order number - length - certification mark

Temperature range

-40°C to +70°C

Voltage

50 V

Proctecting class

IP20

Connection side 1

RJ45 connector, mounted

Connection side 2

RJ45 connector, mounted

Marking

yellow marking tube with marking:

item number - order number - length - certification mark

Item no. with length code

item no. length
S0667-4026-000500,5 m Send inquiry
S0667-4026-001001,0 m Send inquiry
S0667-4026-002002,0 m Send inquiry
S0667-4026-003003,0 m Send inquiry
S0667-4026-005005,0 m Send inquiry
S0667-4026-007507,5 m Send inquiry
S0667-4026-0100010,0 m Send inquiry
S0667-4026-0150015,0 m Send inquiry
S0667-4026-0200020,0 m Send inquiry
S0667-4026-0250025,0 m Send inquiry
item no.
length
S0667-4026-00050
0,5 m
S0667-4026-00100
1,0 m
S0667-4026-00200
2,0 m
S0667-4026-00300
3,0 m
S0667-4026-00500
5,0 m
S0667-4026-00750
7,5 m
S0667-4026-01000
10,0 m
S0667-4026-01500
15,0 m
S0667-4026-02000
20,0 m
S0667-4026-02500
25,0 m

Other lengths on request.

Customized cable assembly according to your wishes.
