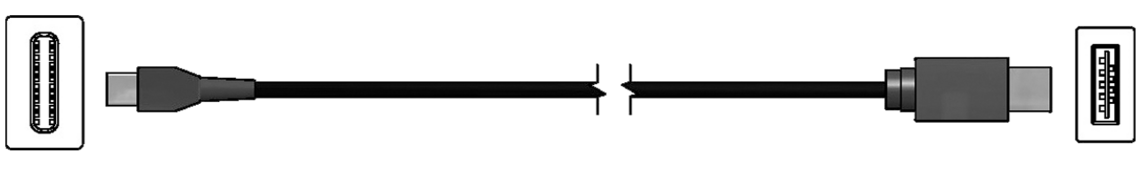

USB 3.0 cable
with hand-assembled type A connector and type C connector
Application
Connection cable USB A with USB C connector
Outstanding features
Cable characteristics:
- mechanically very rugged
- PUR cable suitable for cable tracks
Additional information
SAB marking:
item number, order number, length
Cable data
| Construction | 3x(2x30AWG)ST+2x24AWG |
|---|---|
| Insulation | SABIX® |
| Outer sheath | PUR |
| Outer diameter | approx. 6,1 mm |
| Min. bending radius | 10 x d |
| Peak operating voltage | max. 350 V |
Construction
3x(2x30AWG)ST+2x24AWG
Insulation
SABIX®
Outer sheath
PUR
Outer diameter
approx. 6,1 mm
Min. bending radius
10 x d
Peak operating voltage
max. 350 V
Connector
| side 1 | USB 3.0 type A connector (hand-assembled) |
|---|---|
| side 2 | USB 3.1 type C connector (hand-assembled) |
side 1
USB 3.0 type A connector (hand-assembled)
side 2
USB 3.1 type C connector (hand-assembled)
Configuration examples
| item no. | length | |
|---|---|---|
| S0604-4009-00100 | 100 cm | Send inquiry |
| S0604-4009-00200 | 200 cm | Send inquiry |
| S0604-4009-00300 | 300 cm | Send inquiry |
| S0604-4009-00500 | 500 cm | Send inquiry |
item no.
length
Other lengths on request.
