MTC 201

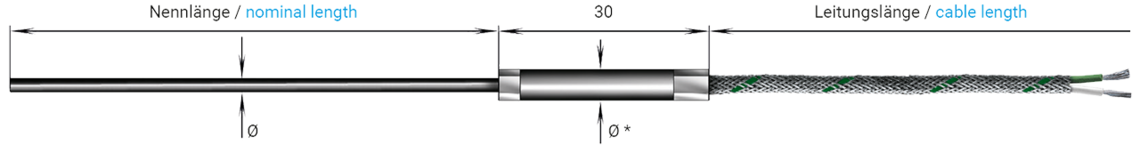

Mineral insulated thermocouple with PFA connection cable Th 22 LTV

Mantel-Thermoelement mit PFA-Anschlussleitung

Application

NiCr-Ni thermocouple (type K) with PFA connection cable Th 22 LTV. The thermocouple can be assembled as 1 x type K or 2 x type K (NiCr-Ni). Further thermocouple types like type J or type L can be manufactured according to customers requirements. The cable ends can be adapted according to the application: Bare stripped, cable lugs M4, wire end sleeves, tinned or other cable ends - according to customer requirements.

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type L

- 2 x type L

- 1 x type J

- 2 x type J

- 1 x type K

- 2 x type K

- other thermocouples according to customer requirement

type L acc. to DIN 43710

type J and K acc. to DIN EN 60584

Sheath-Ø

- 0,64 mm

- 1,00 mm

- 1,50 mm

- 2,0 mm

- 3,0 mm

- 4,5 mm

- 6,0 mm

- 8,0 mm

- other sheath-Ø according to customer requirement

Sheath material

- 1.4541

- 2.4816

- other sheath materials according to customer requirement

Type of cable ends

- bare ends

- cable lugs M4

- end sleeves

- tinned

- other cable ends according to customer requirement

Connection cable

- 1,0 m

- 1,5 m

- 2,0 m

- 2,5 m

- 3,0 m

- 4,0 m

- 5,0 m

- 10,0 m

- other lengths according to customer requirement

Type of measuring tip

- form A, insulated measuring tip, without kink protection

- form A, insulated measuring tip, with kink protection

- form B, welded measuring tip, without kink protection

- form B, welded measuring tip, with kink protection

all types in class 1

Nominal length

According to customer requests. Please specify in mm.

Anschlussleitung

PFA-connection cable Th 22 LTV

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type L

- 2 x type L

- 1 x type J

- 2 x type J

- 1 x type K

- 2 x type K

- other thermocouples according to customer requirement

type L acc. to DIN 43710

type J and K acc. to DIN EN 60584

Sheath-Ø

- 0,64 mm

- 1,00 mm

- 1,50 mm

- 2,0 mm

- 3,0 mm

- 4,5 mm

- 6,0 mm

- 8,0 mm

- other sheath-Ø according to customer requirement

Sheath material

- 1.4541

- 2.4816

- other sheath materials according to customer requirement

Type of cable ends

- bare ends

- cable lugs M4

- end sleeves

- tinned

- other cable ends according to customer requirement

Connection cable

- 1,0 m

- 1,5 m

- 2,0 m

- 2,5 m

- 3,0 m

- 4,0 m

- 5,0 m

- 10,0 m

- other lengths according to customer requirement

Type of measuring tip

- form A, insulated measuring tip, without kink protection

- form A, insulated measuring tip, with kink protection

- form B, welded measuring tip, without kink protection

- form B, welded measuring tip, with kink protection

all types in class 1

Nominal length

According to customer requests. Please specify in mm.

Anschlussleitung

PFA-connection cable Th 22 LTV
