T427

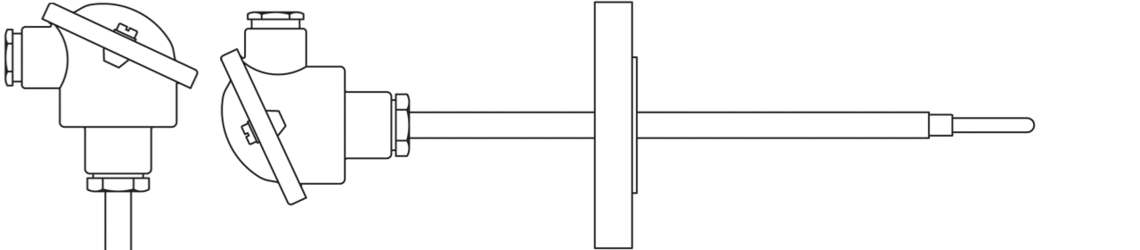

Flange protecting armature for gauge slides Ø 3 mm

Flange protecting armature for gauge slides Ø 3 mm

Flange protecting armature for gauge slides Ø 3 mm

Construction

Protecting tube form FS with tapered measuring tip (quick response time)

- 1.4571 Ø 11 x 2 mm

- 1.4571 Ø 11 x 2 mm - HALAR® - coating

Gauge slide

- without gauge slide

- with gauge slide - acc. to customer’s request

Flange

- DN 20 PN 40 DIN EN 1092-1

- DN 25 PN 40 DIn EN 1092-1

- DN 40 PN 40 DIN EN 1092-1

- DN 50 PN 40 DIN EN 1092-1

Connection head

- B (KE 122)

- DAN-WZ (KE 202)

- DAN-Z (KE 064)

- DAN-WS (KE 204)

- DAN-S (KE 066)

- BNK (KK 029)

- without connection head

- other connection head - acc. to customer’s request

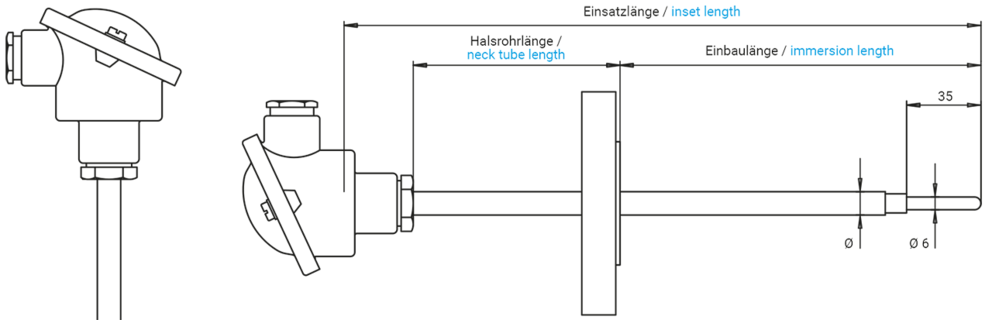

Inset / neck tube / immersion length

- 100/120/255 mm

- 160/120/315 mm

- 250/120/405 mm

- 400/120/555 mm

- other length - acc. to customer’s request

Protecting tube form FS with tapered measuring tip (quick response time)

- 1.4571 Ø 11 x 2 mm

- 1.4571 Ø 11 x 2 mm - HALAR® - coating

Gauge slide

- without gauge slide

- with gauge slide - acc. to customer’s request

Flange

- DN 20 PN 40 DIN EN 1092-1

- DN 25 PN 40 DIn EN 1092-1

- DN 40 PN 40 DIN EN 1092-1

- DN 50 PN 40 DIN EN 1092-1

Connection head

- B (KE 122)

- DAN-WZ (KE 202)

- DAN-Z (KE 064)

- DAN-WS (KE 204)

- DAN-S (KE 066)

- BNK (KK 029)

- without connection head

- other connection head - acc. to customer’s request

Inset / neck tube / immersion length

- 100/120/255 mm

- 160/120/315 mm

- 250/120/405 mm

- 400/120/555 mm

- other length - acc. to customer’s request
