T435

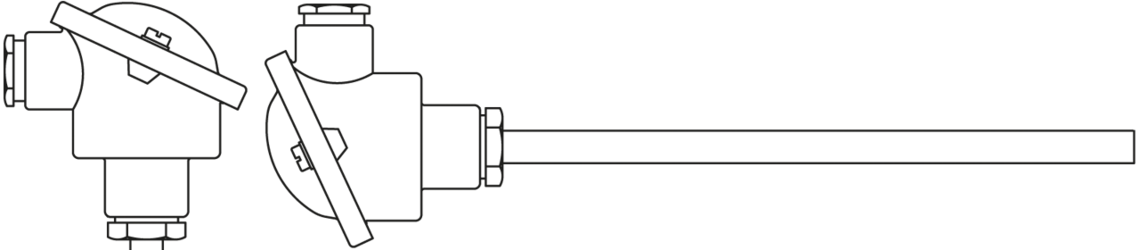

plug-in protecting armatures for gauge slides Ø 6 mm

plug-in protecting armatures for gauge slides Ø 6 mm

plug-in protecting armatures for gauge slides Ø 6 mm

Construction

Protecting tube form VK

- 1.4571 Ø 12 x 2,5 mm

- 1.4571 Ø 10 x 2 mm

- 1.4571 Ø 10 x 1,5 mm

- 1.4571 Ø 8 x 0,75 mm

Gauge slide

- without gauge slide

- with gauge slide - acc. to customer’s request

Screwed thread

- without crewed thread

- G 1/4 A - clamping screw connection

- G 1/2 A - clamping screw connection

- 1/2" NPT - clamping screw connection

Connection head

- B (KE 122)

- DAN-WZ (KE 202)

- DAN-Z (KE 064)

- DAN-WS (KE 204)

- DAN-S (KE 066)

- BNK (KK 029)

- without connection head

- other connection head - acc. to customer’s request

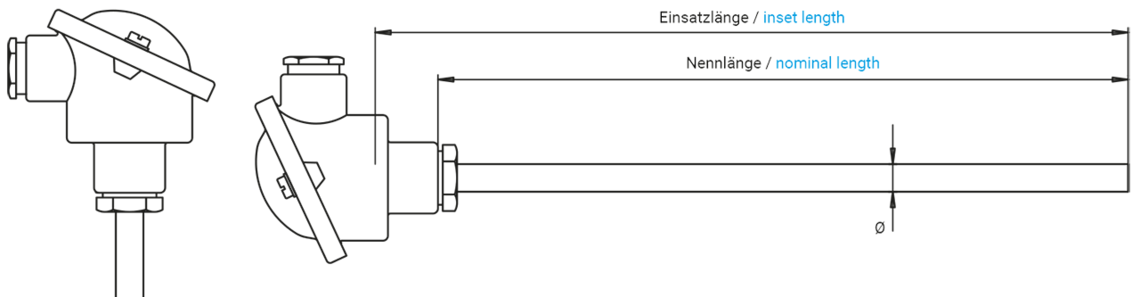

Nominal / inset length

- 250/275 mm

- 290/315 mm

- 350/375 mm

- 380/405 mm

- 410/435 mm

- 500/525 mm

- 530/555 mm

- 630/655 mm

- other length - acc. to customer’s request

Protecting tube form VK

- 1.4571 Ø 12 x 2,5 mm

- 1.4571 Ø 10 x 2 mm

- 1.4571 Ø 10 x 1,5 mm

- 1.4571 Ø 8 x 0,75 mm

Gauge slide

- without gauge slide

- with gauge slide - acc. to customer’s request

Screwed thread

- without crewed thread

- G 1/4 A - clamping screw connection

- G 1/2 A - clamping screw connection

- 1/2" NPT - clamping screw connection

Connection head

- B (KE 122)

- DAN-WZ (KE 202)

- DAN-Z (KE 064)

- DAN-WS (KE 204)

- DAN-S (KE 066)

- BNK (KK 029)

- without connection head

- other connection head - acc. to customer’s request

Nominal / inset length

- 250/275 mm

- 290/315 mm

- 350/375 mm

- 380/405 mm

- 410/435 mm

- 500/525 mm

- 530/555 mm

- 630/655 mm

- other length - acc. to customer’s request
