ZKBi

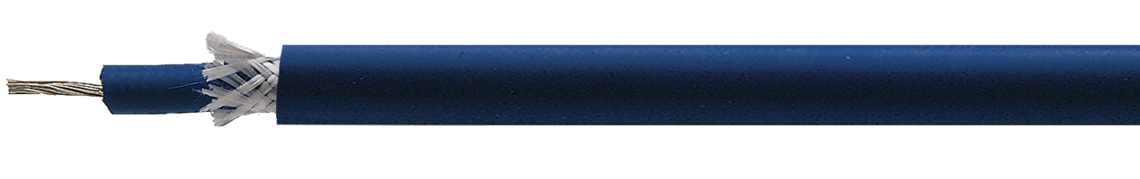

Silicone (Besilen®) ignition cable

Application

The ZKBi is a voltage-stable, silicone ignition cable that is heat resistant and flexible at low temperatures. It is used at high and very unsteady ambient temperatures, e.g. in thermal and process technologies, in motor engineering, in heat system technology, and in dedusting plant and fan engineering.

Outstanding features

  • halogen-free
  • flexible at low temperatures
  • heat resistant
  • voltage-stable

Cable construction

Conductor

tinned copper strands acc. to IEC 60228, EN 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to DIN EN 50363-1

Braiding

fibre-glass

Sheath material

Besilen® 2GM1 acc. to DIN VDE 0207 part 21

Sheath colour

blue (similar RAL 5012)

Technical data

Testing voltage

20000 V

Min. bending radius

7,5 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to DIN VDE 0472 part 815 and IEC 60754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 and EN 60332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + EN 50267-2-2 + VDE 0482 part 267-2-2 - no development of corrosive conflagration gases

Chem. resistance

see Technical Data

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.nominal cross sectionlargest single wire-øouter-ø ± 5%copper figurecable weight ca.
010401011 mm²0,21 mm8 mm9,6 kg/km78 kg/km
010401151,5 mm²0,26 mm8,5 mm14,4 kg/km95 kg/km
