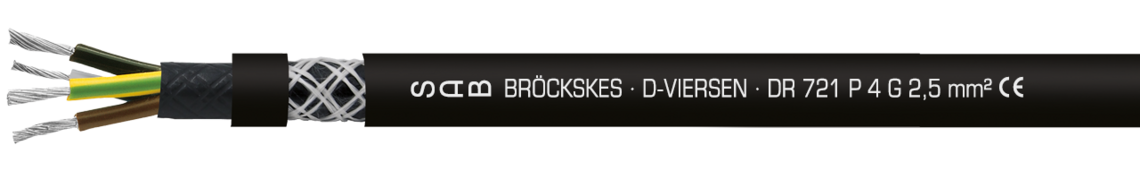

Reeling cable, 0,6/1 kV

bare copper strands acc. to IEC 60228, VDE 0295, class 5

special polymer

coloured acc. to HD 308 (VDE 0293 part 308); from 6 cores black cores with consecutive numbers

acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wire

specially adjusted layering

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

high-tech yarn

PUR TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

black (RAL 9005)

Uo/U 0,6/1 kV

core/core: 4000 V

acc. to VDE 0298-4, see chapter N „Technical Data“

for laying and installation (fixed laying): 6 x d

for repeated winding action (flexible): 10 x d

guided on pulleys (flexible): 12 x d

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

very good against acids, alkalines, solvents, hydraulic liquids, etc.

very good

very good - enhanced due to black sheath colour

acc. to VDE 0298-3 section 7.1

the main mechanical characteristics fulfils by the PUR outer sheath are:

-high tensile strength

-high tear strength

-high abrasion resistance

-high notch resistance

acc. to RoHS directive of the European Union
