A 11 Dr

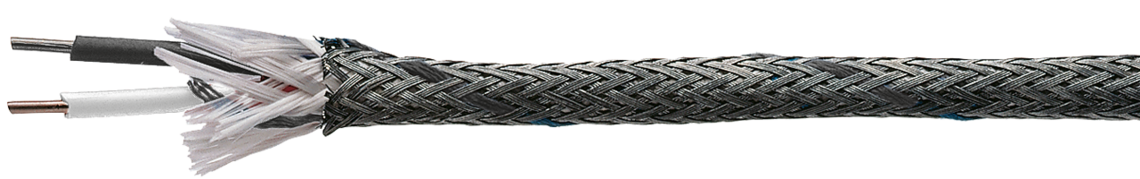

2 Silicone (Besilen®) insulated cores with fibre-glass braiding and steel wire armouring, conductor construction: 1,5 mm² wire

Application

Type J Thermocouple Wire, silicone insulated with insulated strands has a steel wire armouring and a fibre-glass braiding. This Thermocouple Wire is available for thermocouples Type J, Type K, Type L, Type S, Type R/S.

Additional information

DIN 43710 / 43714 (not valid for type B*)
* Not standardized compensating cable for thermocouples type B with application temperatures up to 100 °C resp. 200 °C.
C = compensating cables · X = extension cables



Also available with cross-sections 1,0 mm², 0,75 mm², 0,5 mm² and 0,22 mm²!

Construction

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Stranding

2 resp. 4 cores together

Braiding

fibre-glass

Armouring

galvanized steel wire armouring with tracer

Shape

round

Conductor construction

wire

Conductor cross section

1,5 mm²

Outer diameter

approx. 5,5 mm

Weight/100m

approx. 6,4 kg

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Stranding

2 resp. 4 cores together

Braiding

fibre-glass

Armouring

galvanized steel wire armouring with tracer

Shape

round

Conductor construction

wire

Conductor cross section

1,5 mm²

Outer diameter

approx. 5,5 mm

Weight/100m

approx. 6,4 kg

Technical data

Min. bending radius

12 x d

Temperature range of insulation

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Insulation resistance

> 1 M Ω x km

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Min. bending radius

12 x d

Temperature range of insulation

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Insulation resistance

> 1 M Ω x km

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Colour code For thermocouple Thermocouple
material +Pol/-Pol
Cable type Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
04238988IEC 60584Type TCu - CuNiTXbrown/white (brown)4,28 mV Send inquiry
04238982IEC 60584Type JFe - CuNiJXblack/white (black)5,27 mV Send inquiry
04238915IEC 60584Type KNiCr - NiKCAgreen/white (green)4,10 mV Send inquiry
04238919IEC 60584Type KNiCr - NiKCBgreen/white (green)4,10 mV Send inquiry
04238984IEC 60584Type KNiCr - NiKXgreen/white (green)4,10 mV Send inquiry
04238983IEC 60584Type ENiCr - CuNiEXpurple/white (purple)6,32 mV Send inquiry
04238917IEC 60584Type R/SPtRh13 - PTPtRh10 - PTR/SCBorange/white (orange)0,65 mV Send inquiry
04238911IEC 60584Type NNiCrSi - NiSiNCpink/white (pink)2,77 mV Send inquiry
04238912DIN 43710 / 43714Type LFe CuNiLXred/blue (blue)5,37 mV Send inquiry
04238914DIN 43710 / 43715Type KKCA4,10 mV Send inquiry
04238916DIN 43710 / 43716Type R/SR/SCB0,65 mV Send inquiry
04238918DIN 43710 / 43717Type UCu - CuNiUXred/brown (brown)4,25 mV Send inquiry
04238921DIN 43710 / 43718Type B*BC-1000,00 mV Send inquiry
04238922DIN 43710 / 43719Type B*BC2000,033 mV Send inquiry
item no.
Colour code
For thermocouple
Thermocouple
material +Pol/-Pol
Cable type
Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
04238988
IEC 60584
Type T
Cu - CuNi
TX
brown/white (brown)
4,28 mV
04238982
IEC 60584
Type J
Fe - CuNi
JX
black/white (black)
5,27 mV
04238915
IEC 60584
Type K
NiCr - Ni
KCA
green/white (green)
4,10 mV
04238919
IEC 60584
Type K
NiCr - Ni
KCB
green/white (green)
4,10 mV
04238984
IEC 60584
Type K
NiCr - Ni
KX
green/white (green)
4,10 mV
04238983
IEC 60584
Type E
NiCr - CuNi
EX
purple/white (purple)
6,32 mV
04238917
IEC 60584
Type R/S
PtRh13 - PTPtRh10 - PT
R/SCB
orange/white (orange)
0,65 mV
04238911
IEC 60584
Type N
NiCrSi - NiSi
NC
pink/white (pink)
2,77 mV
04238912
DIN 43710 / 43714
Type L
Fe CuNi
LX
red/blue (blue)
5,37 mV
04238914
DIN 43710 / 43715
Type K
KCA
4,10 mV
04238916
DIN 43710 / 43716
Type R/S
R/SCB
0,65 mV
04238918
DIN 43710 / 43717
Type U
Cu - CuNi
UX
red/brown (brown)
4,25 mV
04238921
DIN 43710 / 43718
Type B*
BC-100
0,00 mV
04238922
DIN 43710 / 43719
Type B*
BC200
0,033 mV

We continue to manufacture compensating and extension cables with colour code acc. to DIN 43714 and the basic values of DIN 43710.
