A 13 L

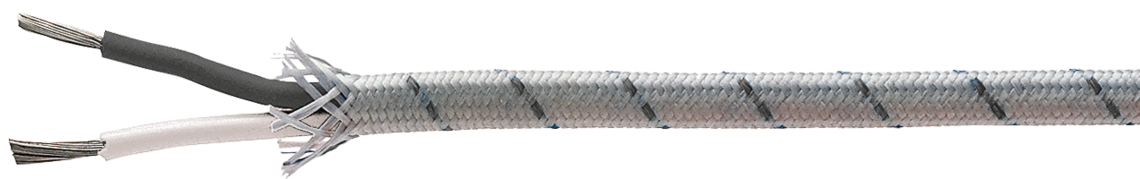

Silicone (Besilen®) insulated cores with fibre-glass braiding

Application

Thermocouple cable type J with an oval shape and a parallel stranding. Moreover, this Thermocouple cable has a braiding of fibre-glass with tracer. The cable is available as compensating cable and thermocouple extension cable and it is suitable for various thermocouple types like, for instance, type T, type K, type J, and type R/S.

Additional information

Also available with cross-sections 1,0 mm², 0,75 mm², 0,5 mm² and 0,22 mm²!



DIN 43710 / 43714 (not valid for type B*)
* Not standardized compensating cable for thermocouples type B with application temperatures up to 100 °C resp. 200 °C.
C = compensating cables · X = extension cables

Construction

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Stranding

2 cores parallel

Braiding

fibre-glass with tracer

Shape

oval

Conductor construction

strand

Conductor cross section

1,5 mm²

Outer diameter

approx. 3,0 x 5,5 mm

Weight/100m

approx. 3,8 kg

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Stranding

2 cores parallel

Braiding

fibre-glass with tracer

Shape

oval

Conductor construction

strand

Conductor cross section

1,5 mm²

Outer diameter

approx. 3,0 x 5,5 mm

Weight/100m

approx. 3,8 kg

Technical data

Min. bending radius

10 x d

Temperature range of insulation

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Insulation resistance

> 1 M Ω x km

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Min. bending radius

10 x d

Temperature range of insulation

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Insulation resistance

> 1 M Ω x km

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Colour code For thermocouple Thermocouple
material +Pol/-Pol
Cable type Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
L04248958IEC 60584Type TCu - CuNiTXbrown/white (brown)4,28 mV Send inquiry
L04248952IEC 60584Type JFe - CuNiJXblack/white (black)5,27 mV Send inquiry
L04248995IEC 60584Type KNiCr - NiKCAgreen/white (green)4,10 mV Send inquiry
L04248999IEC 60584Type KNiCr - NiKCBgreen/white (green)4,10 mV Send inquiry
L04248954IEC 60584Type KNiCr - NiKXgreen/white (green)4,10 mV Send inquiry
L04248953IEC 60584Type ENiCr - CuNiEXpurple/white (purple)6,32 mV Send inquiry
L04248997IEC 60584Type R/SPtRh13 - PTPtRh10 - PTR/SCBorange/white (orange)0,65 mV Send inquiry
L04248991IEC 60584Type NNiCrSi - NiSiNCpink/white (pink)2,77 mV Send inquiry
L04248992DIN 43710 / 43714Type LFe CuNiLXred/blue (blue)5,37 mV Send inquiry
L04248994DIN 43710 / 43715Type KKCA4,10 mV Send inquiry
L04248996DIN 43710 / 43716Type R/SR/SCB0,65 mV Send inquiry
L04248998DIN 43710 / 43717Type UCu - CuNiUXred/brown (brown)4,25 mV Send inquiry
L04248901DIN 43710 / 43718Type B*BC-1000,00 mV Send inquiry
L04248902DIN 43710 / 43719Type B*BC-2000,033 mV Send inquiry
item no.
Colour code
For thermocouple
Thermocouple
material +Pol/-Pol
Cable type
Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
L04248958
IEC 60584
Type T
Cu - CuNi
TX
brown/white (brown)
4,28 mV
L04248952
IEC 60584
Type J
Fe - CuNi
JX
black/white (black)
5,27 mV
L04248995
IEC 60584
Type K
NiCr - Ni
KCA
green/white (green)
4,10 mV
L04248999
IEC 60584
Type K
NiCr - Ni
KCB
green/white (green)
4,10 mV
L04248954
IEC 60584
Type K
NiCr - Ni
KX
green/white (green)
4,10 mV
L04248953
IEC 60584
Type E
NiCr - CuNi
EX
purple/white (purple)
6,32 mV
L04248997
IEC 60584
Type R/S
PtRh13 - PTPtRh10 - PT
R/SCB
orange/white (orange)
0,65 mV
L04248991
IEC 60584
Type N
NiCrSi - NiSi
NC
pink/white (pink)
2,77 mV
L04248992
DIN 43710 / 43714
Type L
Fe CuNi
LX
red/blue (blue)
5,37 mV
L04248994
DIN 43710 / 43715
Type K
KCA
4,10 mV
L04248996
DIN 43710 / 43716
Type R/S
R/SCB
0,65 mV
L04248998
DIN 43710 / 43717
Type U
Cu - CuNi
UX
red/brown (brown)
4,25 mV
L04248901
DIN 43710 / 43718
Type B*
BC-100
0,00 mV
L04248902
DIN 43710 / 43719
Type B*
BC-200
0,033 mV

We continue to manufacture compensating and extension cables with colour code acc. to DIN 43714 and the basic values of DIN 43710.
