A 18 L

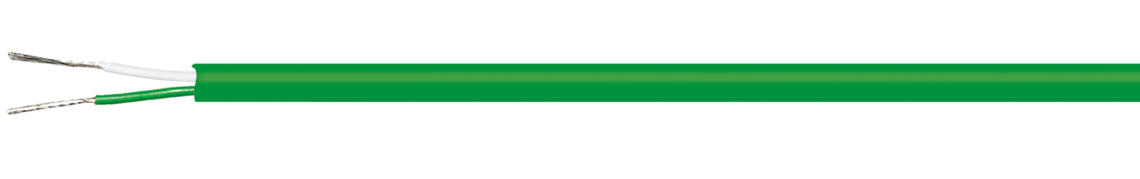

FEP insulated cable A 18 L (1,5 mm²) · A 18-022 L (0,22 mm²)

Application

FEP Thermocouple Cable. This cable is available as thermocouple extension cable & compensating cable for thermocouples of various types, for instance, type J, type K, type T, type S, type N, type R/S.

Outstanding features

  • very good against fats, oils, salts and acids

Additional information

DIN 43710 / 43714 (not valid for type B*)
* Not standardized compensating cable for thermocouples type B with application temperatures up to 100 °C resp. 200 °C.
C = compensating cables · X = extension cables

Construction

Insulation

FEP

Stranding

2 cores together

Wrapping

PETP foil

Sheath material

FEP

Shape

round

Conductor construction

strand

Conductor cross section

A 18 L: 1,5 mm²

A 18-022 L: 0,22 mm²

Outer diameter

A 18 L: approx. 4,8 mm

A 18-022 L: approx. 2,5 mm

Weight/100m

A 18 L: approx. 4,2 kg

A 18-022 L: approx. 1,0 kg

Insulation

FEP

Stranding

2 cores together

Wrapping

PETP foil

Sheath material

FEP

Shape

round

Conductor construction

strand

Conductor cross section

A 18 L: 1,5 mm²

A 18-022 L: 0,22 mm²

Outer diameter

A 18 L: approx. 4,8 mm

A 18-022 L: approx. 2,5 mm

Weight/100m

A 18 L: approx. 4,2 kg

A 18-022 L: approx. 1,0 kg

Technical data

Min. bending radius

12 x d

Radiation resistance

1 x 10^7 cJ/kg

Temperature range of insulation

fixed laying: -90/+180°C

flexible application: -55/+180°C

Insulation resistance

> 1 M Ω x km

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24

resp. IEC 60332-3-25 + VDE 0482-332-3-25 Cat. C resp. D, see chapter N „Technical Data“.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Chem. resistance

very good against fats, oils, salts and acids

Absence of harmful substances

acc. to RoHS directive of the European Union

Min. bending radius

12 x d

Radiation resistance

1 x 10^7 cJ/kg

Temperature range of insulation

fixed laying: -90/+180°C

flexible application: -55/+180°C

Insulation resistance

> 1 M Ω x km

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24

resp. IEC 60332-3-25 + VDE 0482-332-3-25 Cat. C resp. D, see chapter N „Technical Data“.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Chem. resistance

very good against fats, oils, salts and acids

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Type Colour code For thermocouple Thermocouple
material +Pol/-Pol
Cable type Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
04338958A 18 LIEC 60584Type TCu - CuNiTXbrown/white (brown)4,28 mV Send inquiry
04338952A 18 LIEC 60584Type JFe - CuNiJXblack/white (black)5,27 mV Send inquiry
04338995A 18 LIEC 60584Type KNiCr - NiKCAgreen/white (green)4,10 mV Send inquiry
04338999A 18 LIEC 60584Type KNiCr - NiKCBgreen/white (green)4,10 mV Send inquiry
04338954A 18 LIEC 60584Type KNiCr - NiKXgreen/white (green)4,10 mV Send inquiry
04338953A 18 LIEC 60584Type ENiCr - CuNiEXpurple/white (purple)6,32 mV Send inquiry
04338997A 18 LIEC 60584Type R/SPtRh13 - PTPtRh10 - PTR/SCBorange/white (orange)0,65 mV Send inquiry
04338991A 18 LIEC 60584Type NNiCrSi - NiSiNCpink/white (pink)2,77 mV Send inquiry
04338992A 18 LDIN 43710 / 43714Type LFe CuNiLXred/blue (blue)5,37 mV Send inquiry
04338994A 18-022 LDIN 43710 / 43715Type KKCA4,10 mV Send inquiry
04338996A 18-022 LDIN 43710 / 43716Type R/SR/SCB0,65 mV Send inquiry
04338998A 18 LDIN 43710 / 43717Type UCu - CuNiUXred/brown (brown)4,25 mV Send inquiry
04338901A 18-022 LDIN 43710 / 43718Type B*BC-1000,00 mV Send inquiry
04338902A 18-022 LDIN 43710 / 43719Type B*BC-2000,033 mV Send inquiry
04331958A 18-022 LIEC 60584Type TCu - CuNiTXbrown/white (brown)4,28 mV Send inquiry
04331952A 18-022 LIEC 60584Type JFe - CuNiJXblack/white (black)5,27 mV Send inquiry
04331995A 18-022 LIEC 60584Type KNiCr - NiKCAgreen/white (green)4,10 mV Send inquiry
04331999A 18-022 LIEC 60584Type KNiCr - NiKCBgreen/white (green)4,10 mV Send inquiry
04331954A 18-022 LIEC 60584Type KNiCr - NiKXgreen/white (green)4,10 mV Send inquiry
04331953A 18-022 LIEC 60584Type ENiCr - CuNiEXpurple/white (purple)6,32 mV Send inquiry
04331997A 18-022 LIEC 60584Type R/SPtRh13 - PTPtRh10 - PTR/SCBorange/white (orange)0,65 mV Send inquiry
04331991A 18-022 LIEC 60584Type NNiCrSi - NiSiNCpink/white (pink)2,77 mV Send inquiry
04331992A 18-022 LDIN 43710 / 43714Type LFe CuNiLXred/blue (blue)5,37 mV Send inquiry
04331998A 18-022 LDIN 43710 / 43717Type UCu - CuNiUXred/brown (brown)4,25 mV Send inquiry
item no.
Type
Colour code
For thermocouple
Thermocouple
material +Pol/-Pol
Cable type
Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
04338958
A 18 L
IEC 60584
Type T
Cu - CuNi
TX
brown/white (brown)
4,28 mV
04338952
A 18 L
IEC 60584
Type J
Fe - CuNi
JX
black/white (black)
5,27 mV
04338995
A 18 L
IEC 60584
Type K
NiCr - Ni
KCA
green/white (green)
4,10 mV
04338999
A 18 L
IEC 60584
Type K
NiCr - Ni
KCB
green/white (green)
4,10 mV
04338954
A 18 L
IEC 60584
Type K
NiCr - Ni
KX
green/white (green)
4,10 mV
04338953
A 18 L
IEC 60584
Type E
NiCr - CuNi
EX
purple/white (purple)
6,32 mV
04338997
A 18 L
IEC 60584
Type R/S
PtRh13 - PTPtRh10 - PT
R/SCB
orange/white (orange)
0,65 mV
04338991
A 18 L
IEC 60584
Type N
NiCrSi - NiSi
NC
pink/white (pink)
2,77 mV
04338992
A 18 L
DIN 43710 / 43714
Type L
Fe CuNi
LX
red/blue (blue)
5,37 mV
04338994
A 18-022 L
DIN 43710 / 43715
Type K
KCA
4,10 mV
04338996
A 18-022 L
DIN 43710 / 43716
Type R/S
R/SCB
0,65 mV
04338998
A 18 L
DIN 43710 / 43717
Type U
Cu - CuNi
UX
red/brown (brown)
4,25 mV
04338901
A 18-022 L
DIN 43710 / 43718
Type B*
BC-100
0,00 mV
04338902
A 18-022 L
DIN 43710 / 43719
Type B*
BC-200
0,033 mV
04331958
A 18-022 L
IEC 60584
Type T
Cu - CuNi
TX
brown/white (brown)
4,28 mV
04331952
A 18-022 L
IEC 60584
Type J
Fe - CuNi
JX
black/white (black)
5,27 mV
04331995
A 18-022 L
IEC 60584
Type K
NiCr - Ni
KCA
green/white (green)
4,10 mV
04331999
A 18-022 L
IEC 60584
Type K
NiCr - Ni
KCB
green/white (green)
4,10 mV
04331954
A 18-022 L
IEC 60584
Type K
NiCr - Ni
KX
green/white (green)
4,10 mV
04331953
A 18-022 L
IEC 60584
Type E
NiCr - CuNi
EX
purple/white (purple)
6,32 mV
04331997
A 18-022 L
IEC 60584
Type R/S
PtRh13 - PTPtRh10 - PT
R/SCB
orange/white (orange)
0,65 mV
04331991
A 18-022 L
IEC 60584
Type N
NiCrSi - NiSi
NC
pink/white (pink)
2,77 mV
04331992
A 18-022 L
DIN 43710 / 43714
Type L
Fe CuNi
LX
red/blue (blue)
5,37 mV
04331998
A 18-022 L
DIN 43710 / 43717
Type U
Cu - CuNi
UX
red/brown (brown)
4,25 mV

We continue to manufacture compensating and extension cables with colour code acc. to DIN 43714 and the basic values of DIN 43710.
