A 19 L

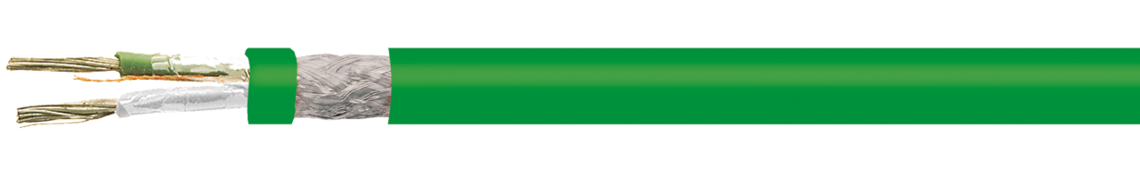

FEP insulated cable with overall copper screen, A 19 L (1,5 mm²)· A 19-022 L (0,22 mm²)

Application

The A 19 L has a tinned copper braiding screen and an FEP sheath as well as a round shape. Moreover, it does not cause flame propagation acc. to IEC 60332 + EN 60332 Cat. C resp. D. This cable is available as extension and compensating cable.

Additional information

DIN 43710 / 43714 (not valid for type B*)
* Not standardized compensating cable for thermocouples type B with application temperatures up to 100 °C resp. 200 °C.
C = compensating cables · X = extension cables

Construction

Insulation

FEP

Stranding

2 cores together

Screen

tinned copper braiding

Sheath material

FEP

Shape

round

Conductor construction

strand

Conductor cross section

A 19 L.: 1,5 mm²

A 19-022 L: 0,22 mm²

Outer diameter

A 19 L.: approx. 5,5 mm

A 19-022 L: approx. 3,0 mm

Weight/100m

A 19 L.: approx. 5,9 kg

A 19-022 L: approx. 1,9 kg

Insulation

FEP

Stranding

2 cores together

Screen

tinned copper braiding

Sheath material

FEP

Shape

round

Conductor construction

strand

Conductor cross section

A 19 L.: 1,5 mm²

A 19-022 L: 0,22 mm²

Outer diameter

A 19 L.: approx. 5,5 mm

A 19-022 L: approx. 3,0 mm

Weight/100m

A 19 L.: approx. 5,9 kg

A 19-022 L: approx. 1,9 kg

Technical data

Min. bending radius

12 x d

Radiation resistance

1 x 10^7 cJ/kg

Temperature range of insulation

fixed laying: -90/+180°C

flexible application: -55/+180°C

Insulation resistance

> 1 M Ω x km

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24

resp. IEC 60332-3-25 + VDE 0482-332-3-25 Cat. C resp. D, see chapter N „Technical Data“.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Chem. resistance

very good against fats, oils, salts and acids

Absence of harmful substances

acc. to RoHS directive of the European Union

Min. bending radius

12 x d

Radiation resistance

1 x 10^7 cJ/kg

Temperature range of insulation

fixed laying: -90/+180°C

flexible application: -55/+180°C

Insulation resistance

> 1 M Ω x km

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24

resp. IEC 60332-3-25 + VDE 0482-332-3-25 Cat. C resp. D, see chapter N „Technical Data“.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Chem. resistance

very good against fats, oils, salts and acids

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Type Colour code For thermocouple Thermocouple
material +Pol/-Pol
Cable type Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
04358958A 19 LIEC 60584Type TCu - CuNiTXbrown/white (brown)4,28 mV Send inquiry
04358952A 19 LIEC 60584Type JFe - CuNiJXblack/white (black)5,27 mV Send inquiry
04358995A 19 LIEC 60584Type KNiCr - NiKCAgreen/white (green)4,10 mV Send inquiry
04358999A 19 LIEC 60584Type KNiCr - NiKCBgreen/white (green)4,10 mV Send inquiry
04358954A 19 LIEC 60584Type KNiCr - NiKXgreen/white (green)4,10 mV Send inquiry
04358953A 19 LIEC 60584Type ENiCr - CuNiEXpurple/white (purple)6,32 mV Send inquiry
04358997A 19 LIEC 60584Type R/SPtRh13 - PTPtRh10 - PTR/SCBorange/white (orange)0,65 mV Send inquiry
04358991A 19 LIEC 60584Type NNiCrSi - NiSiNCpink/white (pink)2,77 mV Send inquiry
04358992A 19 LDIN 43710 / 43714Type LFe CuNiLXred/blue (blue)5,37 mV Send inquiry
04358994A 19-022 LDIN 43710 / 43714Type KKCA4,10 mV Send inquiry
04358996A 19-022 LDIN 43710 / 43714Type R/SR/SCB0,65 mV Send inquiry
04358998A 19 LDIN 43710 / 43714Type UCu - CuNiUXred/brown (brown)4,25 mV Send inquiry
04358901A 19-022 LDIN 43710 / 43714Type B*BC-1000,00 mV Send inquiry
04358902A 19-022 LDIN 43710 / 43714Type B*BC-2000,033 mV Send inquiry
04351958A 19-022 LIEC 60584Type TCu - CuNiTXbrown/white (brown)4,28 mV Send inquiry
04351952A 19-022 LIEC 60584Type JFe - CuNiJXblack/white (black)5,27 mV Send inquiry
04351995A 19-022 LIEC 60584Type KNiCr - NiKCAgreen/white (green)4,10 mV Send inquiry
04351999A 19-022 LIEC 60584Type KNiCr - NiKCBgreen/white (green)4,10 mV Send inquiry
04351954A 19-022 LIEC 60584Type KNiCr - NiKXgreen/white (green)4,10 mV Send inquiry
04351953A 19-022 LIEC 60584Type ENiCr - CuNiEXpurple/white (purple)6,32 mV Send inquiry
04351997A 19-022 LIEC 60584Type R/SPtRh13 - PTPtRh10 - PTR/SCBorange/white (orange)0,65 mV Send inquiry
04351991A 19-022 LIEC 60584Type NNiCrSi - NiSiNCpink/white (pink)2,77 mV Send inquiry
04351992A 19-022 LDIN 43710 / 43714Type LFe CuNiLXred/blue (blue)5,37 mV Send inquiry
04351998A 19-022 LDIN 43710 / 43714Type UCu - CuNiUXred/brown (brown)4,25 mV Send inquiry
item no.
Type
Colour code
For thermocouple
Thermocouple
material +Pol/-Pol
Cable type
Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
04358958
A 19 L
IEC 60584
Type T
Cu - CuNi
TX
brown/white (brown)
4,28 mV
04358952
A 19 L
IEC 60584
Type J
Fe - CuNi
JX
black/white (black)
5,27 mV
04358995
A 19 L
IEC 60584
Type K
NiCr - Ni
KCA
green/white (green)
4,10 mV
04358999
A 19 L
IEC 60584
Type K
NiCr - Ni
KCB
green/white (green)
4,10 mV
04358954
A 19 L
IEC 60584
Type K
NiCr - Ni
KX
green/white (green)
4,10 mV
04358953
A 19 L
IEC 60584
Type E
NiCr - CuNi
EX
purple/white (purple)
6,32 mV
04358997
A 19 L
IEC 60584
Type R/S
PtRh13 - PTPtRh10 - PT
R/SCB
orange/white (orange)
0,65 mV
04358991
A 19 L
IEC 60584
Type N
NiCrSi - NiSi
NC
pink/white (pink)
2,77 mV
04358992
A 19 L
DIN 43710 / 43714
Type L
Fe CuNi
LX
red/blue (blue)
5,37 mV
04358994
A 19-022 L
DIN 43710 / 43714
Type K
KCA
4,10 mV
04358996
A 19-022 L
DIN 43710 / 43714
Type R/S
R/SCB
0,65 mV
04358998
A 19 L
DIN 43710 / 43714
Type U
Cu - CuNi
UX
red/brown (brown)
4,25 mV
04358901
A 19-022 L
DIN 43710 / 43714
Type B*
BC-100
0,00 mV
04358902
A 19-022 L
DIN 43710 / 43714
Type B*
BC-200
0,033 mV
04351958
A 19-022 L
IEC 60584
Type T
Cu - CuNi
TX
brown/white (brown)
4,28 mV
04351952
A 19-022 L
IEC 60584
Type J
Fe - CuNi
JX
black/white (black)
5,27 mV
04351995
A 19-022 L
IEC 60584
Type K
NiCr - Ni
KCA
green/white (green)
4,10 mV
04351999
A 19-022 L
IEC 60584
Type K
NiCr - Ni
KCB
green/white (green)
4,10 mV
04351954
A 19-022 L
IEC 60584
Type K
NiCr - Ni
KX
green/white (green)
4,10 mV
04351953
A 19-022 L
IEC 60584
Type E
NiCr - CuNi
EX
purple/white (purple)
6,32 mV
04351997
A 19-022 L
IEC 60584
Type R/S
PtRh13 - PTPtRh10 - PT
R/SCB
orange/white (orange)
0,65 mV
04351991
A 19-022 L
IEC 60584
Type N
NiCrSi - NiSi
NC
pink/white (pink)
2,77 mV
04351992
A 19-022 L
DIN 43710 / 43714
Type L
Fe CuNi
LX
red/blue (blue)
5,37 mV
04351998
A 19-022 L
DIN 43710 / 43714
Type U
Cu - CuNi
UX
red/brown (brown)
4,25 mV
