CATLine CAT 6A HT

Gigabit Ethernet cable – high temperature resistant with UL recognition, CSA approval

Marking for CATLine CAT 6A HT: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.6A HT 4x2x26AWG  1631-4631  UL AWM Style 21618 150°C 600V CE

Marking for CATLine CAT 6A HT: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.6A HT 4x2x26AWG 1631-4631 UL AWM Style 21618 150°C 600V CE

Application

CAT 6A cable, high temperature resistant with UL approval. Characteristic impedance: 100Ω ± 10Ω, meets the electrical and transmission requirements for high-frequency in accordance with EN 50288-10-2 (CAT 6A).

Temperature range:

UL: up to +150°C
not moved: -90°C/+180°C
moved: up to -55°C/+180°C

Outstanding features

  • UL recognition
  • high temperature resistant
  • low temperature resistant
  • flame retardant and self-extinguishing
  • very good oil resistance
  • good chemical resistance
  • good against aggressive chemicals

Additional information

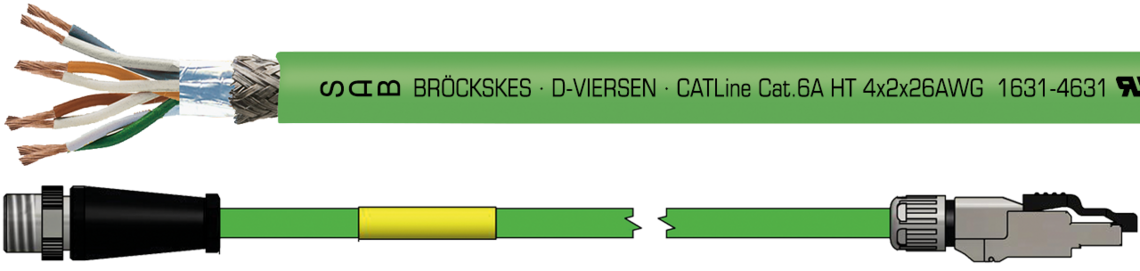

also possible as harnessed cable with M12 or RJ 45 plug

Construction

Conductor

bare copper strands, fine wires

Insulation

FEP

Colour code

white/blue, white/orange, white/green, white/brown

Stranding

twisted to pairs

Wrapping

PETP foil

Screen

alu foil and tinned copper braiding

Sheath material:

FEP

Sheath colour

green (similar RAL 6018)

Conductor

bare copper strands, fine wires

Insulation

FEP

Colour code

white/blue, white/orange, white/green, white/brown

Stranding

twisted to pairs

Wrapping

PETP foil

Screen

alu foil and tinned copper braiding

Sheath material:

FEP

Sheath colour

green (similar RAL 6018)

Technical data

Peak operating voltage

max. 90 V

Voltage UL

600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

VDE fixed laying: -90°C/+180°C

VDE flexible application: -55°C/+180°C

UL: up to +150°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL VW1

Oil resistance

very good

Chemical resistance

very good against acids, halogens, bases, chlorinated solvents as well as organic and inorganic compounds

Characteristic impedance

100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency acc. to EN 50288-10-2 (CAT 6A)

UL Style

21618

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 90 V

Voltage UL

600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

VDE fixed laying: -90°C/+180°C

VDE flexible application: -55°C/+180°C

UL: up to +150°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL VW1

Oil resistance

very good

Chemical resistance

very good against acids, halogens, bases, chlorinated solvents as well as organic and inorganic compounds

Characteristic impedance

100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency acc. to EN 50288-10-2 (CAT 6A)

UL Style

21618

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension max. core-ø Outer-ø ± 5% Copper figure Cable weight ≈
163146314 x 2 x 26 AWG1,05 mm5,7 mm30 kg/km52 kg/km Send inquiry
item no.
Dimension
max. core-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
16314631
4 x 2 x 26 AWG
1,05 mm
5,7 mm
30 kg/km
52 kg/km

Other dimensions and colours are possible on request.
