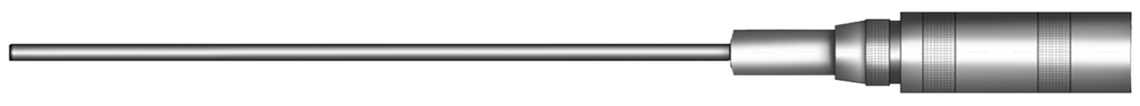

Mineral insulated resistance thermometer with Lemo connection end

Plug-in thermocouple

Plug-in thermocouple

Application

This temperature probe is versatile due to its design and high temperature resistance. With its slim design and flexible sheath material, the RTD Pt100 sensor can even be installed in hardly reachable positions. Easy installation is ensured in conjunction with a clamping screw connection.

Additional information

RTD: PT100 acc. to DIN EN 60751
sheath material: mat. no. 1.4541
measuring range: -50 up to +400°C and -50 up to +600°C
plug/ socket size: size 0 with sheath-Ø 1,5 mm
 size 1 with sheath-Ø 1,5 mm – 4,5 mm
 size 2 with sheath-Ø 6,00 mm



Construction

RTD

- 1 x PT100 class A

- 2 x PT100 class A

- 1 x PT100 class B

- 2 x PT100 class B

Connection types of inner wire

- 2-wire circuit

- 3-wire circuit

- 4-wire circuit

Sheath diameter

- 1,5 mm

- 3,0 mm

- 4,5 mm

- other sheath diameter - acc. to customer’s request

Connection element

- socket size 0

- plug size 0

- socket size 1

- plug size 1

- socket size 2

- plug size 2

- other connection elements - acc. to customer’s request

Accessories (fix)

- without socket/plug housing

- with socket/plug housing

- other accessories - acc. to customer’s request

Measuring ranges

▪ -50 up to +400°

▪ -50 up to +600°

- other measuring ranges - acc. to customer’s request

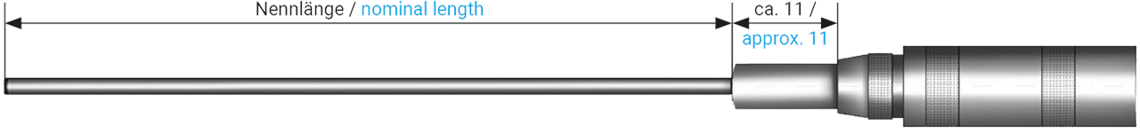

Nominal length

According to customer requests. Please specify in mm.

Possible on request

- with batch certificate and identification

- Dakks calibration on request

- accessories (fix) - acc. to customer’s request

RTD

- 1 x PT100 class A

- 2 x PT100 class A

- 1 x PT100 class B

- 2 x PT100 class B

Connection types of inner wire

- 2-wire circuit

- 3-wire circuit

- 4-wire circuit

Sheath diameter

- 1,5 mm

- 3,0 mm

- 4,5 mm

- other sheath diameter - acc. to customer’s request

Connection element

- socket size 0

- plug size 0

- socket size 1

- plug size 1

- socket size 2

- plug size 2

- other connection elements - acc. to customer’s request

Accessories (fix)

- without socket/plug housing

- with socket/plug housing

- other accessories - acc. to customer’s request

Measuring ranges

▪ -50 up to +400°

▪ -50 up to +600°

- other measuring ranges - acc. to customer’s request

Nominal length

According to customer requests. Please specify in mm.

Possible on request

- with batch certificate and identification

- Dakks calibration on request

- accessories (fix) - acc. to customer’s request

Configuration examples

item no. RTD ø Nominal length Connection types Connection ends
T603-046-3271 x PT100 class A1,5 mm100 mm4-wire circuitLemo plug size 0, 4 pole Send inquiry
T603-040-0281 x PT100 class A3,0 mm100 mm4-wire circuitLemo plug size 1, 4 pole Send inquiry
item no.
RTD
ø
Nominal length
Connection types
Connection ends
T603-046-327
1 x PT100 class A
1,5 mm
100 mm
4-wire circuit
Lemo plug size 0, 4 pole
T603-040-028
1 x PT100 class A
3,0 mm
100 mm
4-wire circuit
Lemo plug size 1, 4 pole

Other configurations are possible on request.
