Mineral insulated thermocouple with plug / plug-in mineral insulated thermocouple with plug

Mineral insulated thermocouple with connector

Mineral insulated thermocouple with connector

Application

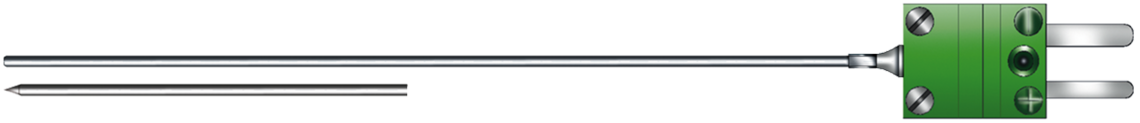

This mineral insulated thermocouple with standard plug or miniatur thermoplug is versatile due to its design and high temperature resistance. With its slim design and flexible sheath material, the thermocouple can even be installed in hardly reachable positions. Easy installation is ensured in conjunction with a clamping screw connection.

Additional information

Especially appropriate to collect temperatures in test vehicles in the vehicle interior. By slight pressure, the plunge-in thermocouple can be placed for example in the seats or neck-rests to collect the temperature.

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type J

- 2 x type J

- 1 x type K

- 2 x type K

- other thermocouples - acc. to customer’s request

Sheath diameter

- 0,25 mm

- 0,50 mm

- 0,64 mm

- 0,75 mm

- 1,00 mm

- 1,50 mm

- 2,00 mm

- 3,00 mm

- 4,50 mm

- 6,00 mm

- other sheath diameters - acc. to customer’s request

Sheath material

- 1.4541 (+800°C)

- 2.4816 (+1100°C)

- other sheath materials - acc. to customer’s request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Type of measuring tip

- class 1, form A, insulated measuring tip

- class 1, form B, welded measuring tip

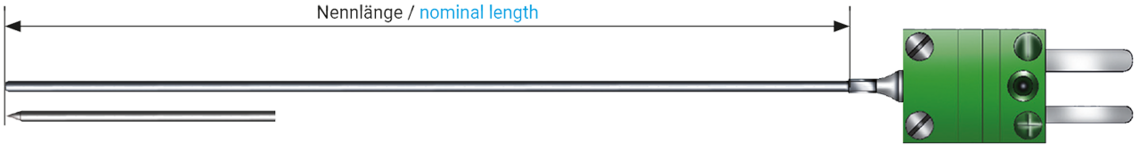

Nominal length

According to customer requests. Please specify in mm.

Possible on request

- with batch certificate and identification

- Dakks calibration on request

- accessories (fix) - acc. to customer’s request

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type J

- 2 x type J

- 1 x type K

- 2 x type K

- other thermocouples - acc. to customer’s request

Sheath diameter

- 0,25 mm

- 0,50 mm

- 0,64 mm

- 0,75 mm

- 1,00 mm

- 1,50 mm

- 2,00 mm

- 3,00 mm

- 4,50 mm

- 6,00 mm

- other sheath diameters - acc. to customer’s request

Sheath material

- 1.4541 (+800°C)

- 2.4816 (+1100°C)

- other sheath materials - acc. to customer’s request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Type of measuring tip

- class 1, form A, insulated measuring tip

- class 1, form B, welded measuring tip

Nominal length

According to customer requests. Please specify in mm.

Possible on request

- with batch certificate and identification

- Dakks calibration on request

- accessories (fix) - acc. to customer’s request

Configuration examples

item no. Type ø Nominal length Material Connection ends Feature
T302-051-218K0,50 mm100 mm2.4816miniature thermoplugwithout tip Send inquiry
T302-046-275K1,00 mm100 mm2.4816miniature thermoplugwithout tip Send inquiry
T302-043-185K1,50 mm100 mm1.4541miniature thermoplugwith tip Send inquiry
item no.
Type
ø
Nominal length
Material
Connection ends
Feature
T302-051-218
K
0,50 mm
100 mm
2.4816
miniature thermoplug
without tip
T302-046-275
K
1,00 mm
100 mm
2.4816
miniature thermoplug
without tip
T302-043-185
K
1,50 mm
100 mm
1.4541
miniature thermoplug
with tip

Other configurations are possible on request.
