Th LRS

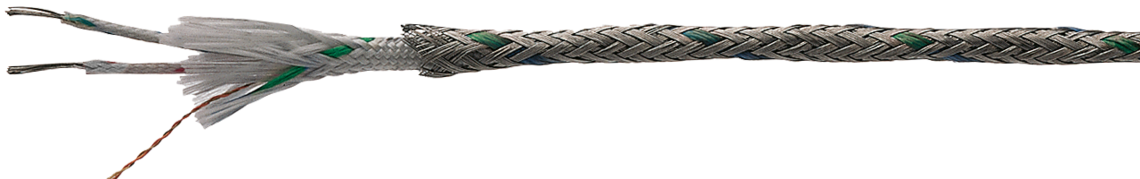

Fibre-glass insulated extension cables for thermocouples with special fibre-glass braiding and steel wire armouring

Application

Th LRS is a fibre-glass insulated extension cable for thermocouples with special fibre-glass braiding and steel wire armouring. This thermocouple wire withstands a temperature of up to max. 400°C.

Additional information

Construction

Insulation

special fibre-glass

Stranding

cores together

Braiding

special fibre-glass

Armouring

galvanized steel wire armouring with tracer

Shape

round

Conductor construction

0,22 mm² = 7 x 0,20 mm ø

0,50 mm² = 16 x 0,20 mm ø

1,00 mm² = 32 x 0,20 mm ø

Insulation

special fibre-glass

Stranding

cores together

Braiding

special fibre-glass

Armouring

galvanized steel wire armouring with tracer

Shape

round

Conductor construction

0,22 mm² = 7 x 0,20 mm ø

0,50 mm² = 16 x 0,20 mm ø

1,00 mm² = 32 x 0,20 mm ø

Technical data

Min. bending radius

12 x d

Temperature range

max. +400°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24

resp. IEC 60332-3-25 + VDE 0482-332-3-25 Cat. C resp. D, see chapter N „Technical Data“.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Absence of harmful substances

acc. to RoHS directive of the European Union

Min. bending radius

12 x d

Temperature range

max. +400°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24

resp. IEC 60332-3-25 + VDE 0482-332-3-25 Cat. C resp. D, see chapter N „Technical Data“.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Type No. of cores x
cross section
For thermocouple Approx. outer-ø Cable weight ≈
047210…*Th 20 LRS2 x 0,22 mm²Fe-CuNi3,1 mm1,9 kg/100m Send inquiry
047211…*Th 50 LRS2 x 0,50 mm²Fe-CuNi3,7 mm3,9 kg/100m Send inquiry
047212…*Th 100 LRS2 x 1,00 mm²Fe-CuNi4,5 mm5,2 kg/100m Send inquiry
047213…*Th 20 -4 LRS4 x 0,22 mm²Fe-CuNi3,5 mm2,9 kg/100m Send inquiry
047214…*Th 50 -4 LRS4 x 0,50 mm²Fe-CuNi4,2 mm5,1 kg/100m Send inquiry
047215…*Th 100-4 LRS4 x 1,00 mm²Fe-CuNi5,4 mm7,5 kg/100m Send inquiry
047210 …*Th 20 LRS2 x 0,22 mm²NiCr-Ni3,1 mm1,9 kg/100m Send inquiry
047211 …*Th 50 LRS2 x 0,50 mm²NiCr-Ni3,7 mm3,9 kg/100m Send inquiry
047212 …*Th 100 LRS2 x 1,00 mm²NiCr-Ni4,5 mm5,2 kg/100m Send inquiry
047213 …*Th 20 -4 LRS4 x 0,22 mm²NiCr-Ni3,5 mm2,9 kg/100m Send inquiry
047214 …*Th 50 -4 LRS4 x 0,50 mm²NiCr-Ni4,2 mm5,1 kg/100m Send inquiry
047215 …*Th 100-4 LRS4 x 1,00 mm²NiCr-Ni5,4 mm7,5 kg/100m Send inquiry
item no.
Type
No. of cores x
cross section
For thermocouple
Approx. outer-ø
Cable weight ≈
047210…*
Th 20 LRS
2 x 0,22 mm²
Fe-CuNi
3,1 mm
1,9 kg/100m
047211…*
Th 50 LRS
2 x 0,50 mm²
Fe-CuNi
3,7 mm
3,9 kg/100m
047212…*
Th 100 LRS
2 x 1,00 mm²
Fe-CuNi
4,5 mm
5,2 kg/100m
047213…*
Th 20 -4 LRS
4 x 0,22 mm²
Fe-CuNi
3,5 mm
2,9 kg/100m
047214…*
Th 50 -4 LRS
4 x 0,50 mm²
Fe-CuNi
4,2 mm
5,1 kg/100m
047215…*
Th 100-4 LRS
4 x 1,00 mm²
Fe-CuNi
5,4 mm
7,5 kg/100m
047210 …*
Th 20 LRS
2 x 0,22 mm²
NiCr-Ni
3,1 mm
1,9 kg/100m
047211 …*
Th 50 LRS
2 x 0,50 mm²
NiCr-Ni
3,7 mm
3,9 kg/100m
047212 …*
Th 100 LRS
2 x 1,00 mm²
NiCr-Ni
4,5 mm
5,2 kg/100m
047213 …*
Th 20 -4 LRS
4 x 0,22 mm²
NiCr-Ni
3,5 mm
2,9 kg/100m
047214 …*
Th 50 -4 LRS
4 x 0,50 mm²
NiCr-Ni
4,2 mm
5,1 kg/100m
047215 …*
Th 100-4 LRS
4 x 1,00 mm²
NiCr-Ni
5,4 mm
7,5 kg/100m

*Thermocouple code ─ Other dimensions and colours are possible on request.
