SAB GSE special cable for earthing
flexible single core earthing cable

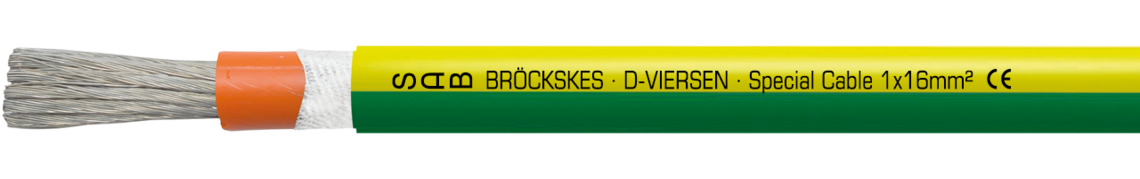

Marking example: SAB BRÖCKSKES · D-VIERSEN · Special Cable 1x16mm² CE
Application
The SAB GSE special cable for earthing is a flexible, single-core cable that has been specially developed for mobile applications such as the connection between refuelling vehicles and aircraft. It ensures safe equipotential bonding during refuelling and guarantees reliable earthing of aircraft in hangars and at passenger boarding bridges.
Outstanding features
- halogen-free
- flame retardant and self-extinguishing
- oil and fuel resistant
- PFAS free
Construction
| Conductor | tinned copper strands acc. to IEC 60228, VDE 0295, class 5 |
|---|---|
| Insulation | SABIX® thermoplastic material , orange |
| Wrapping | non-woven tape |
| Sheath material | SABIX® thermoplastic material |
| Sheath colour | green-yellow (RAL 6018/1021) |
tinned copper strands acc. to IEC 60228, VDE 0295, class 5
SABIX® thermoplastic material , orange
non-woven tape
SABIX® thermoplastic material
green-yellow (RAL 6018/1021)
Technical Data
| Nominal voltage | Uo/U 0,6/1 kV |
|---|---|
| Testing voltage | core/core 10 kV |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d |
| Temperature range | fixed laying: -40/+90 °C flexible application: -30/+90 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | no flame propagation acc. to IEC 60332. Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2 + NF C 32-070 C1 |
| Corrosiveness of conflagration gases | in compliance with IEC 60754-2 + EN 50267-2-2 - no development of corrosive conflagration gases |
| Smoke density | acc. to IEC 61034 + EN 61034 |
| Toxicity | acc. to NX 70-100 |
| Oil and fuel resistance | acc. to EN 50264-1 + VDE 0260-264-1 |
| UV and weather resistance | good |
| Absence of harmful substances | gemäß RoHS-Richtlinie der Europäischen Union |
Uo/U 0,6/1 kV
core/core 10 kV
fixed laying: 5 x d
flexible application: 10 x d
fixed laying: -40/+90 °C
flexible application: -30/+90 °C
acc. to IEC 60754-1 + VDE 0482-754-1
no flame propagation acc. to IEC 60332.
Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2 + NF C 32-070 C1
in compliance with IEC 60754-2 + EN 50267-2-2 - no development of corrosive conflagration gases
acc. to IEC 61034 + EN 61034
acc. to NX 70-100
acc. to EN 50264-1 + VDE 0260-264-1
good
gemäß RoHS-Richtlinie der Europäischen Union
Dimensions
| item no. | Dimension |
Outer-ø ± 10% | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C max. | |
|---|---|---|---|---|---|---|
| L67109029 | 1 x 16,0 mm² | 10,6 mm | 153,6 kg/km | 237 kg/km | 1,24 Ω/km | Send inquiry |
± 10%
at 20°C max.
Other dimensions and colours are possible on request.
